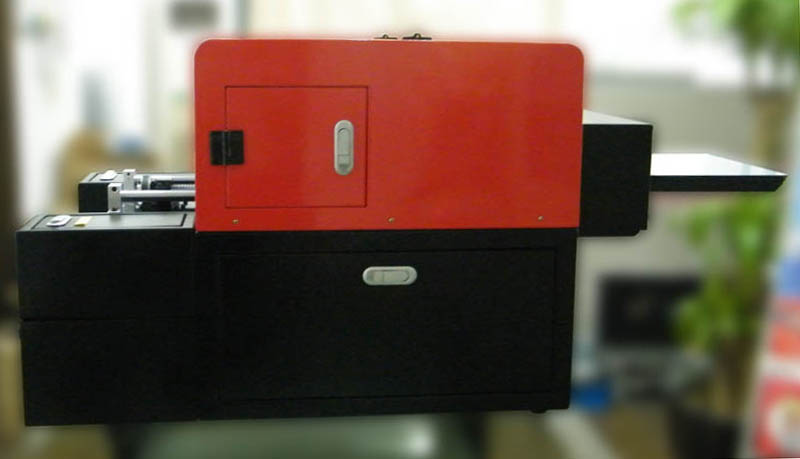

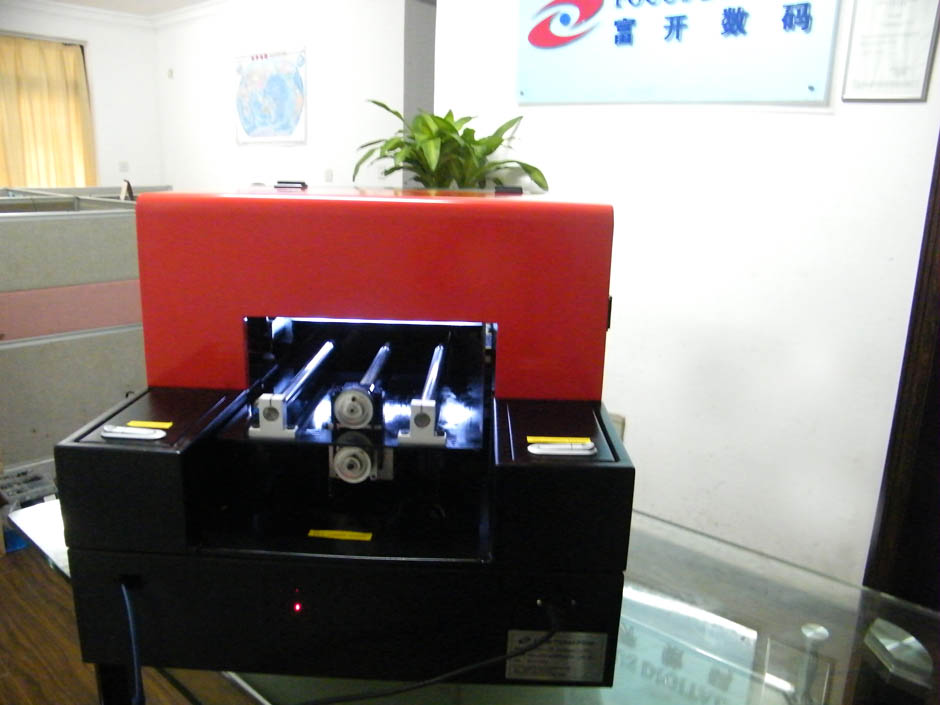

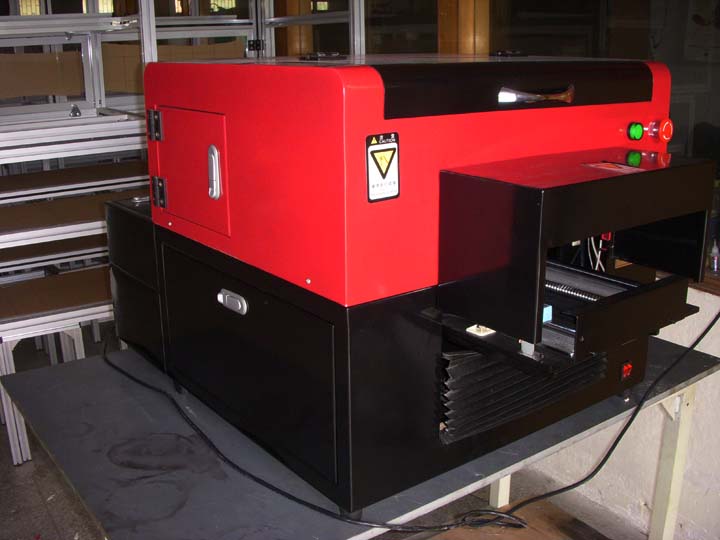

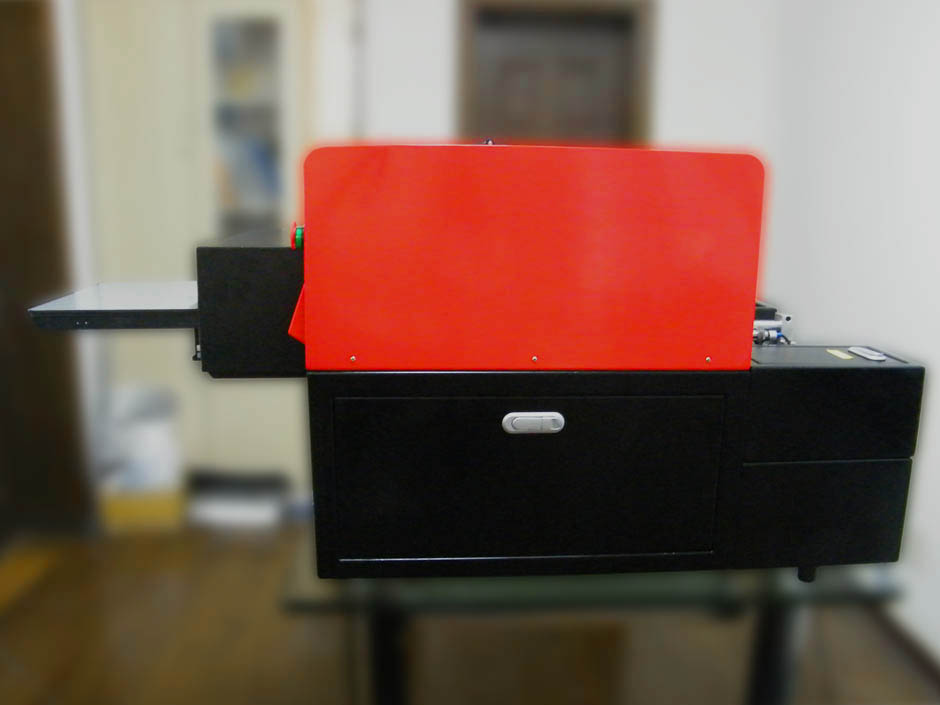

1. Real view:

2. Technical features:

    1. Universal popular design. Matt red & black color match with flying body.

    2. High temperature oxidation treatment of paint, prevent color off and anti-scratch.

    3. Strong mechanical making, 5mm thickness metal frame, 20mm thickness aluminium plate flatbed, all mechanical spareparts made from high quality aluminium, insure all parts working stable without distortion and flatbed moving without shake and excursion after longtime working.

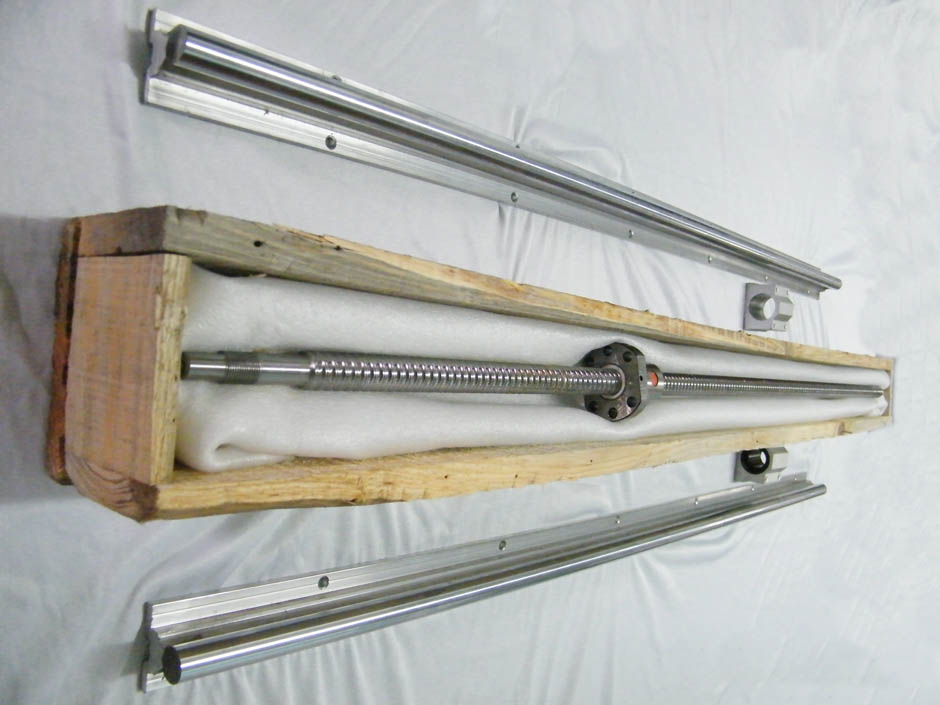

    4. Grinding treatmented ball screw guide rail go with dual cylindrical rail for Y axis motion. Driver the flatbed motion with high precision.

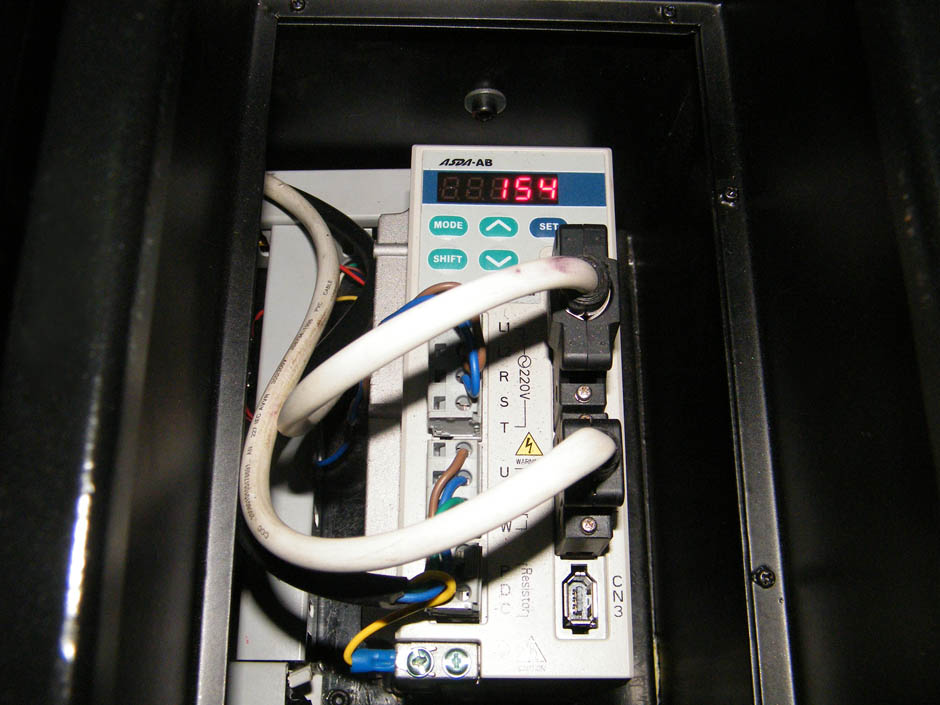

    5. Servo motor with adjustable driver can let the Y axis flatbed moving get precision by 0.01mm. Compare with the step motor, the servo motor can achieve the recycle motion diagnose. It can make the printing very stable and got higher resolution printing. even 5# words can be printed out clearly.

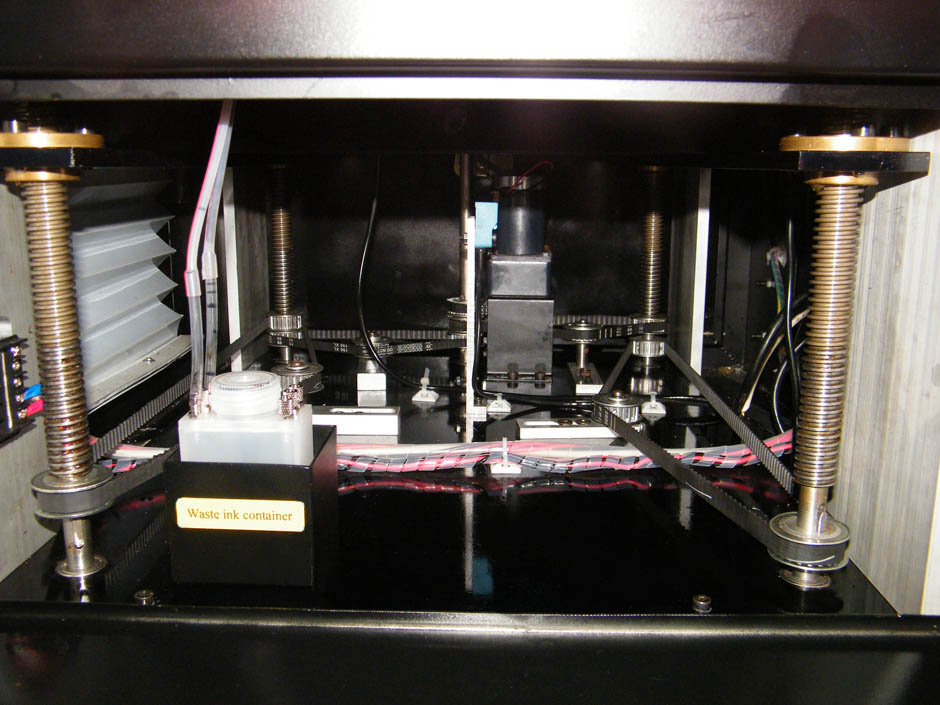

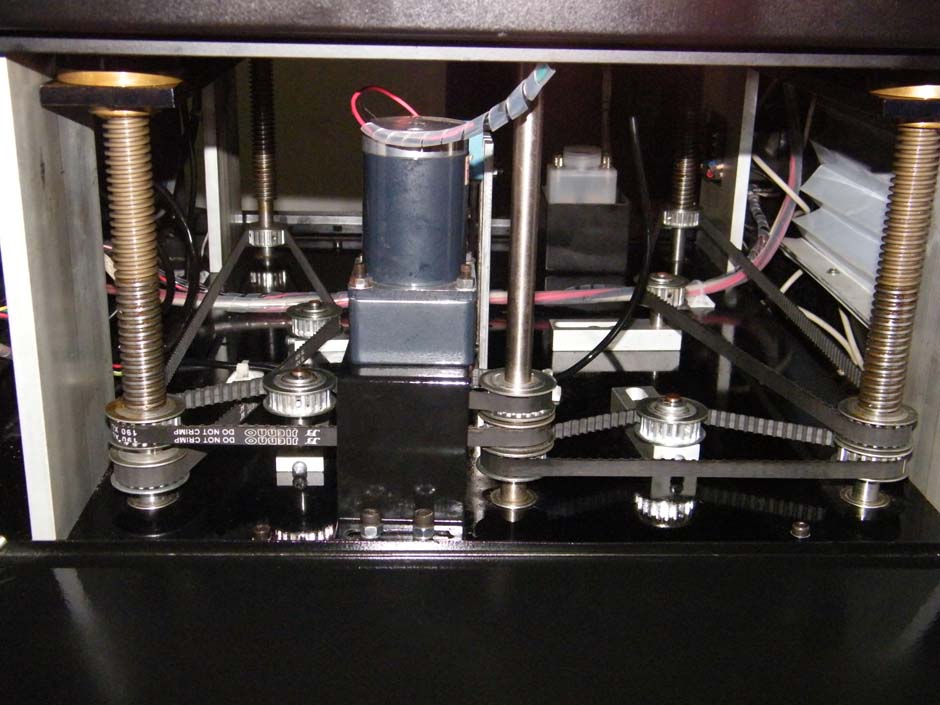

    6. Four pieces T type screw guide go with copper nut. make the Z axis motion stable to achieve the printing flatbed surface level on any position.

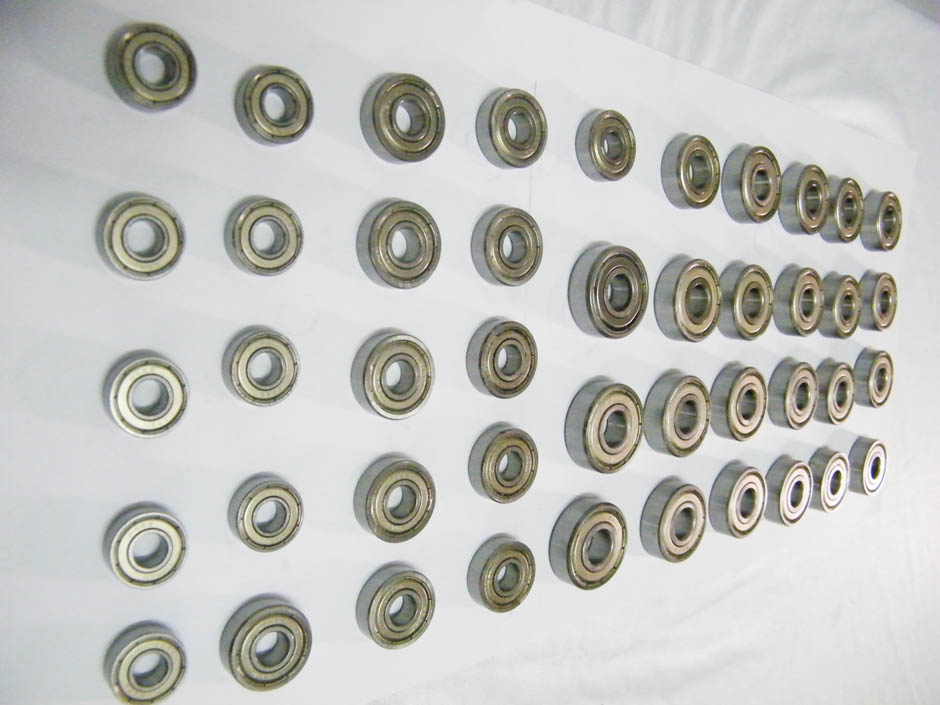

    7. Made in France bearing go with high strength cylcular belt, extend the printer working life and reduce the working noise.

    8. High quality PVC waste ink container, easy to be cleaned.

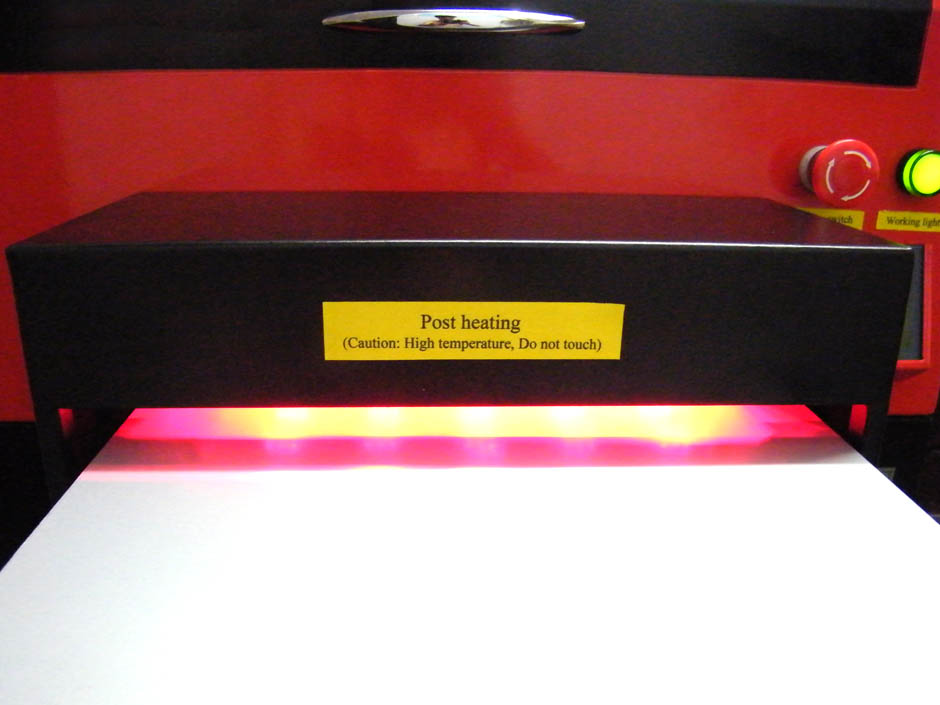

    9. Post heating made from Infrared quartz tube, can get max. heating temperature by 400 degree centigrade instead of the heating press after printing. fix the color of printed job and make it dry quickly.

    10. Industrial PLC control system is the heart of printer,  Before we use the single chip control system, so if any problem will cause the print error, now we use the PLC control system, It is a special alone control center, can dispatch all the working command to different electronic parts separately , and get worked information back. Then process and check itself, also it have self protection problem. Even any problem happen, the PLC will stop for protect the printer and prevent the print head, electronice board and other electronic parts damage.  So it is easy to find out the problem and repair it even any  problem happend.

  --- (Click here to learn more about "PLC" control system)

    11. High quality made touch screen control pannel.

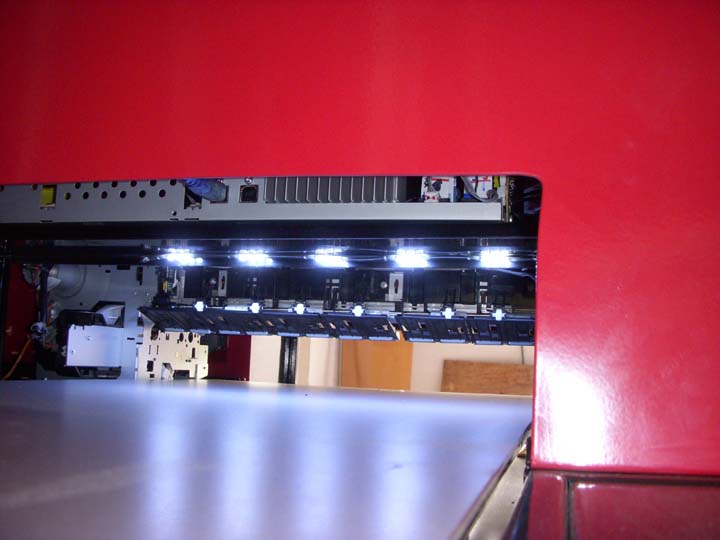

    12. Led working light mounted under the printer beam, let you check the printing quality during printing at real-time.

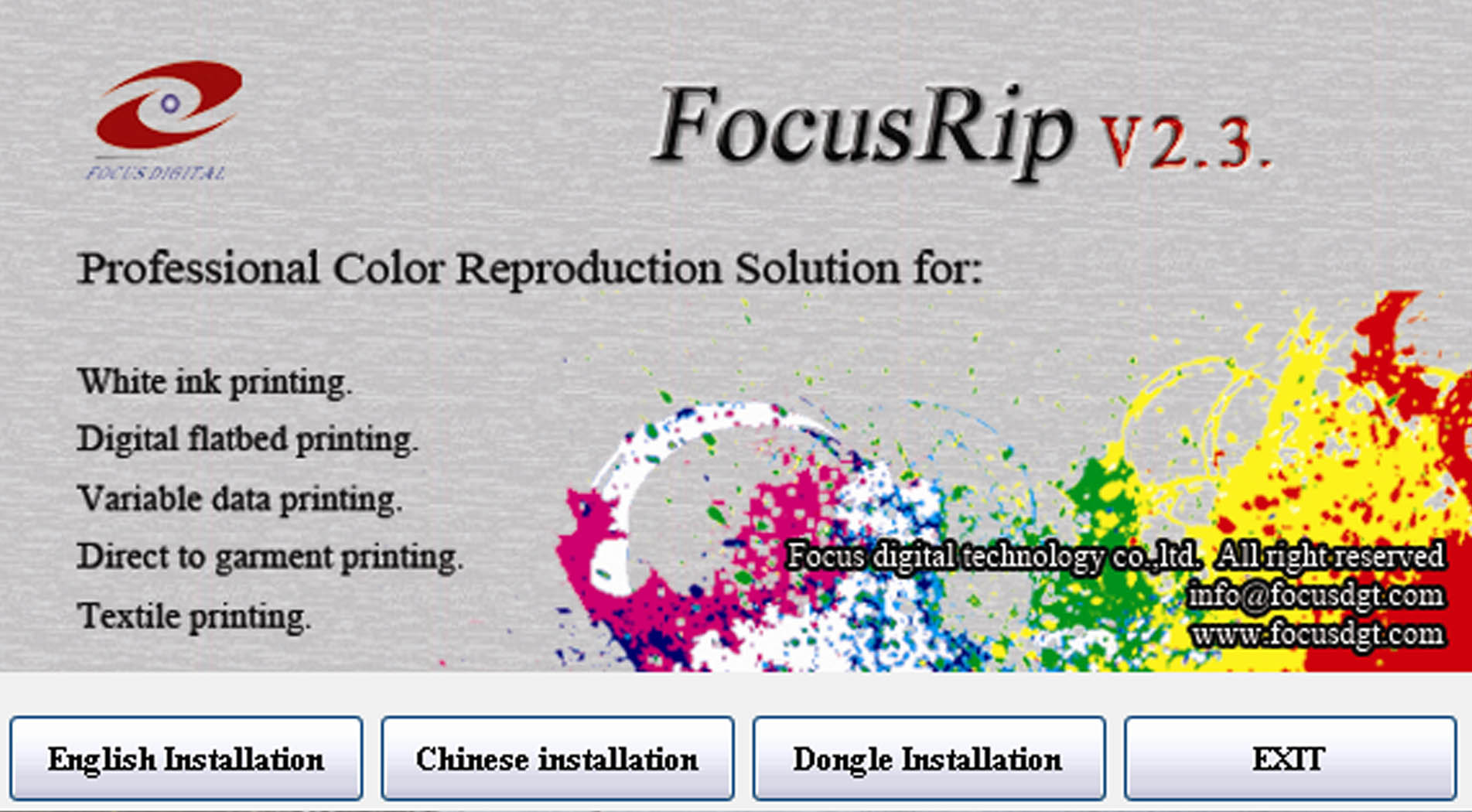

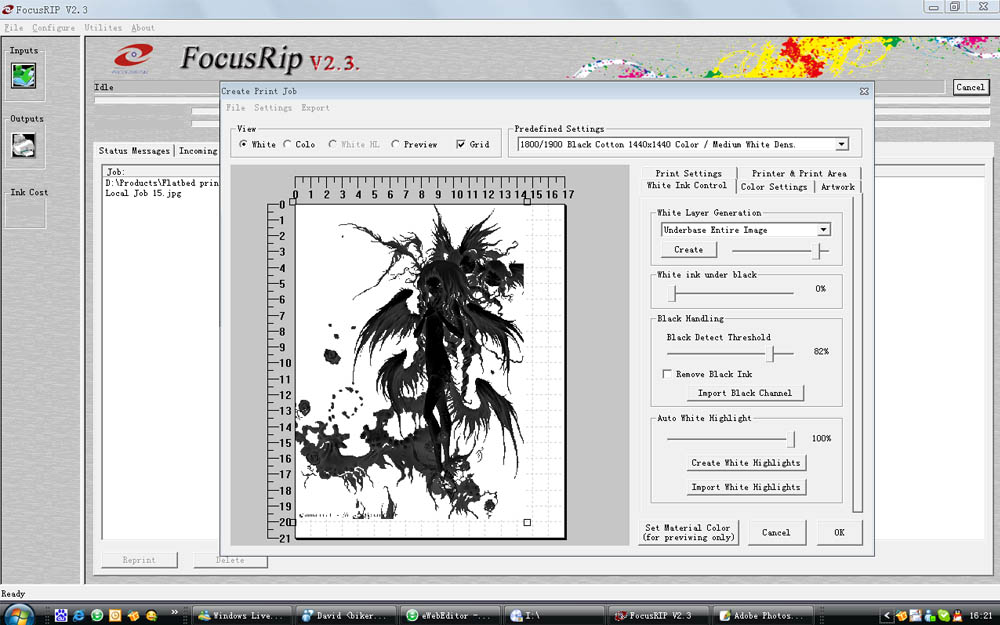

    13. Matching Professional FocusRip white rip and printing software, get better graphic raster and rapid result while printing with white ink. Powerful function such as clor management, color channel divide management, ICC optional, Whiteness adjustable.

     Click here to learn more about FocusRIP

3.  Application field:

    <1>. Sign making shop
    <2>. Photo studio or film development shop
    <3>. Screen printing
    <4>. Garment,Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
    <5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
    <6>. All kind of factories of art items with image.

           etc...

     It is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.

                                                     Note : The actual physical parameters requested to prevail, as do change without prior notice.

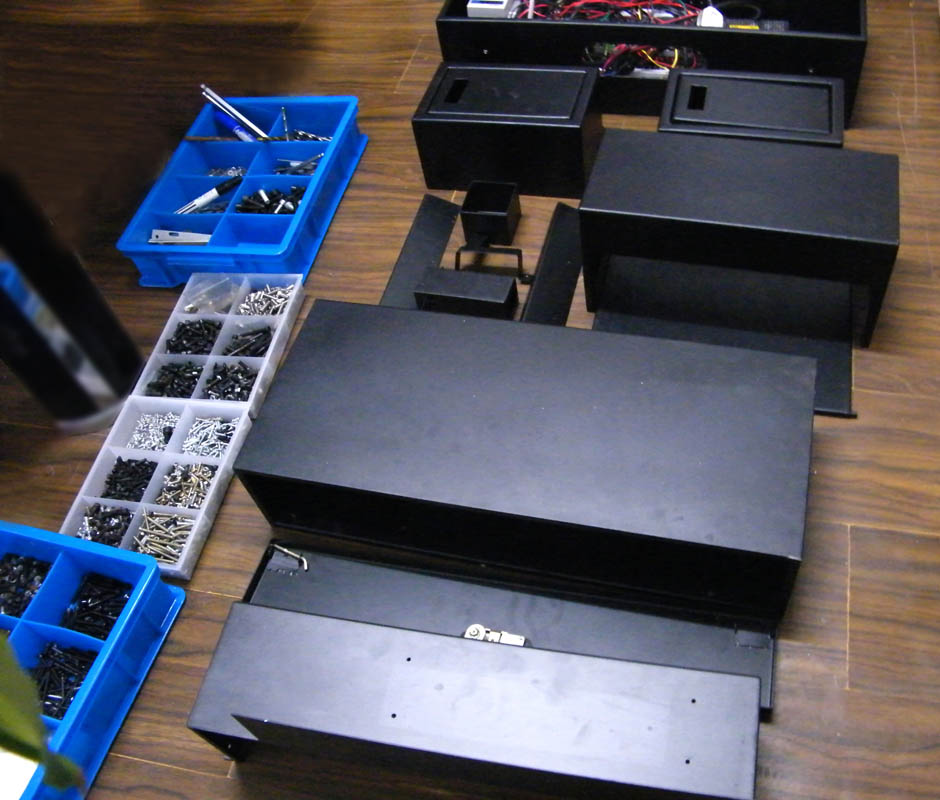

5. Factory views:















        Click here for more...





6.  Printed samples:

















         Click here for more...





7.  Consumable instruction



8.  All flatbed printer model comparing



9.  Expo view
