Focus Polar-Jet is a newest created Industrial DTG direct to garment printer. It was built under newest T7000 printing technology, 360nozzle per line, total 3600 nozzle, variable ink droplet technology to get a grayscale printing result, Air negotive pressure system go with individual keep wet cap station to anti head clog. Match with Wasatch professional Color raster RIP to get a vivid printing result on light and dark underbase. Combine with Focus IPPS control system to get a reliable quality thanks to the top industrial configuration as French Scheider PLC controler, Touch screen, Fuji film 750W AC servo motor, Dual ball screw and THK Linear rail. Compare with other industrial Tshirt printer, Focus Polar-Jet is faster, super printing size, industrial made and also costless. Focus Polar-Jet is the first choice to lead you get the industrial DTG printing.
 Polar-Jet usemanual download  Online video demo

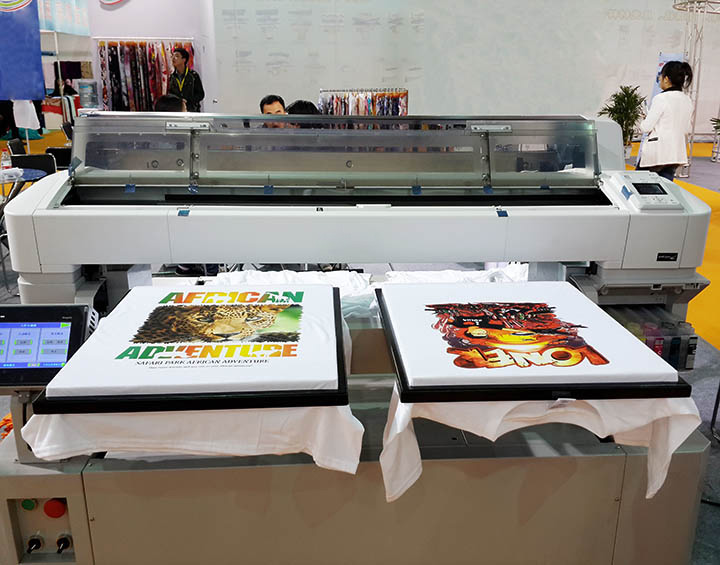

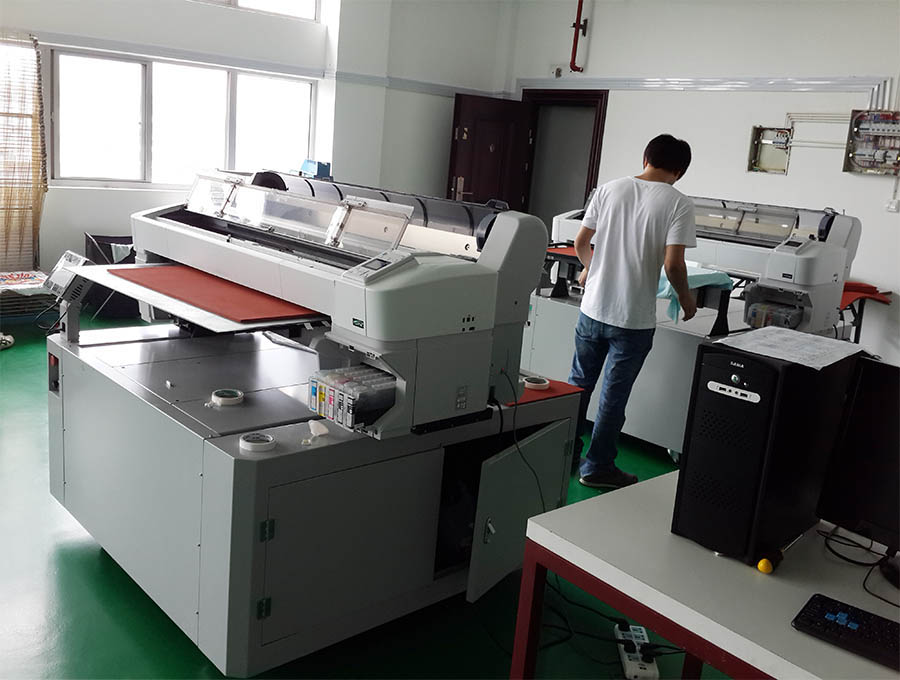

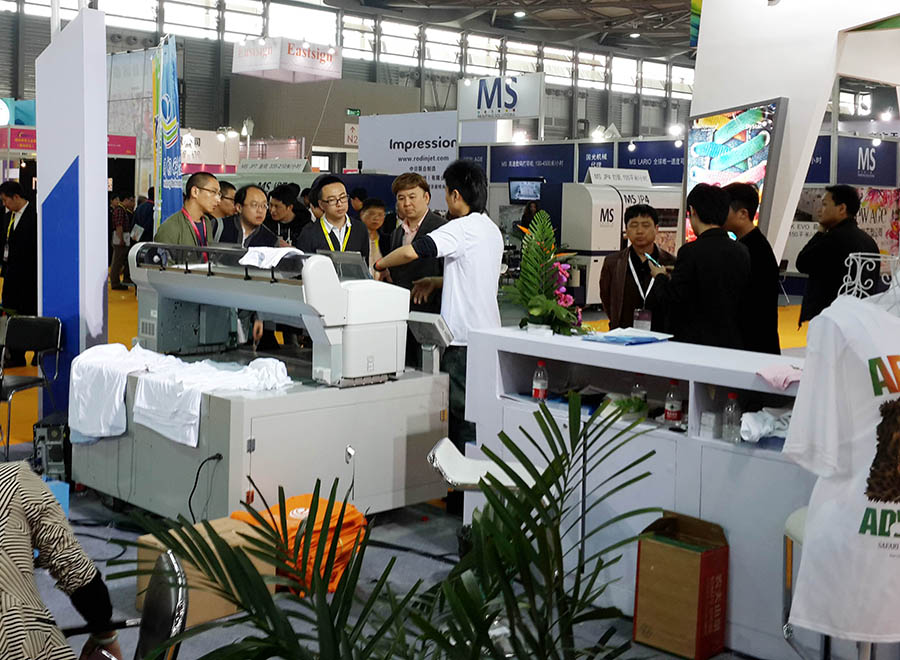

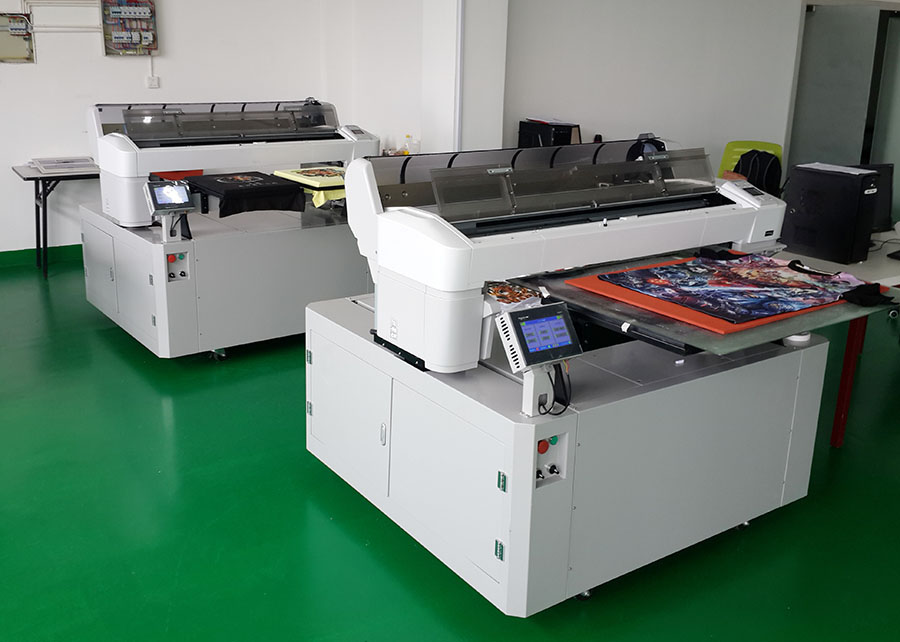

Real view:






Specification
|
Focus Polar-Jet Industrial DTG Printer
|
|
Print head
|
Advanced MicroPiezo TFP print head
Variable size ink droplet technology, Smallest droplet size of 3.5 picolitters,
Nozzle configuration--720 nozzles per color X 5 color, total 3600 nozzle,
Maximum Resolution --2880X1440 dpi
|
|
Printing speed (43*55cm area)
|
Speed: 720*360dpi
|
220-240pcs T'shirt / Hour
|
|
Quality: 1440*720dpi
|
100-120pcs T'shirt / Hour
|
|
High quality: 1440*1440dpi
|
75pcs shirt/ Hour
|
|
Printing resolution
|
720*360dpi / 720*720dpi / 720*1440dpi / 1440*1440dpi / 2880*2880dpi
|
|
Color management
|
Direct to gament ICC curve
|
|
Max. table printing size
|
1100mm*700mm
|
|
Max. pallet print size
|
410*500mm standard T'shirt pallet*2pcs
|
|
Printing Direction
|
Uidirection / Bidirection
|
|
Ink dot jet frequency
|
1Hz-2000Hz optional
|
|
Table drive type
|
French Schneider 750W AC servo motor
|
|
Carriage drive type
|
Intelligent DC servo motor
|
|
Guide type
|
Dual individual Japan THK Linear rail at left and right side
|
|
Transmission system
|
Dual individual ball screw transmission at left and right side
|
|
Ink dot type
|
1bits, 2bits, dark, halfton, real time
|
|
Fire type
|
Rand, fog, wave, 2D, Variable droplet
|
|
Head maintainance type
|
Wet-cap system / Auto flash system
|
|
Control type
|
Computer Intelligent & French Schneider PLC controller
|
|
Color Ink Tank Volume
|
700ml cartridge * 4pcs
|
|
White ink tank volume
|
700ml Cartridge supply
|
|
Ink type
|
DTG ink/ sublimation ink/ reactive ink/ discharge ink/ eco solvent ink/ CTS ink /Edible ink
|
|
Print head anti-clog system
|
Intelligent Self Protect System, Negotive air purage system, Keep wet system
|
|
RIP software
|
Wasatch professional V7.0/TX / Custom choose
|
|
Power
|
110V 50HZ / 220V 50HZ 800W
|
|
Printing Interface
|
TCP/IP Ethernet cable / USB2.0/ USB3.0
|
|
Operation System
|
Win2000/ WinXP/.Win7 / Win8
|
|
Working Environment
|
50%humidity, 21-27℃
|
|
Printer Size
|
L1750mm*W1600mm*H1550mm
|
|
Shipping Size
|
L1800mm*W1680mm*H1600mm
|
|
Printer N.Weight/G.Weight
|
320KG / 370KG
|
Technical features:

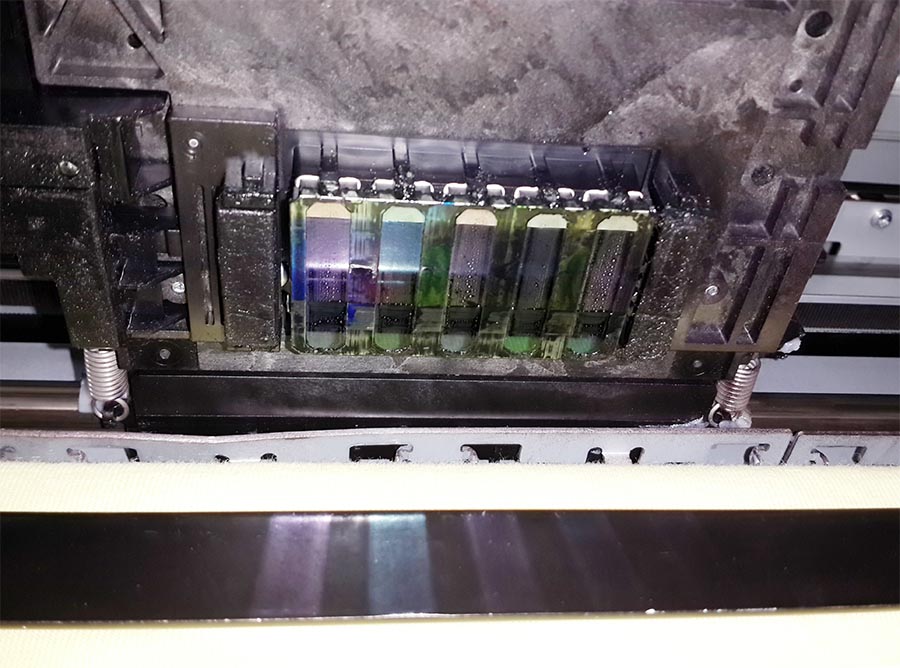

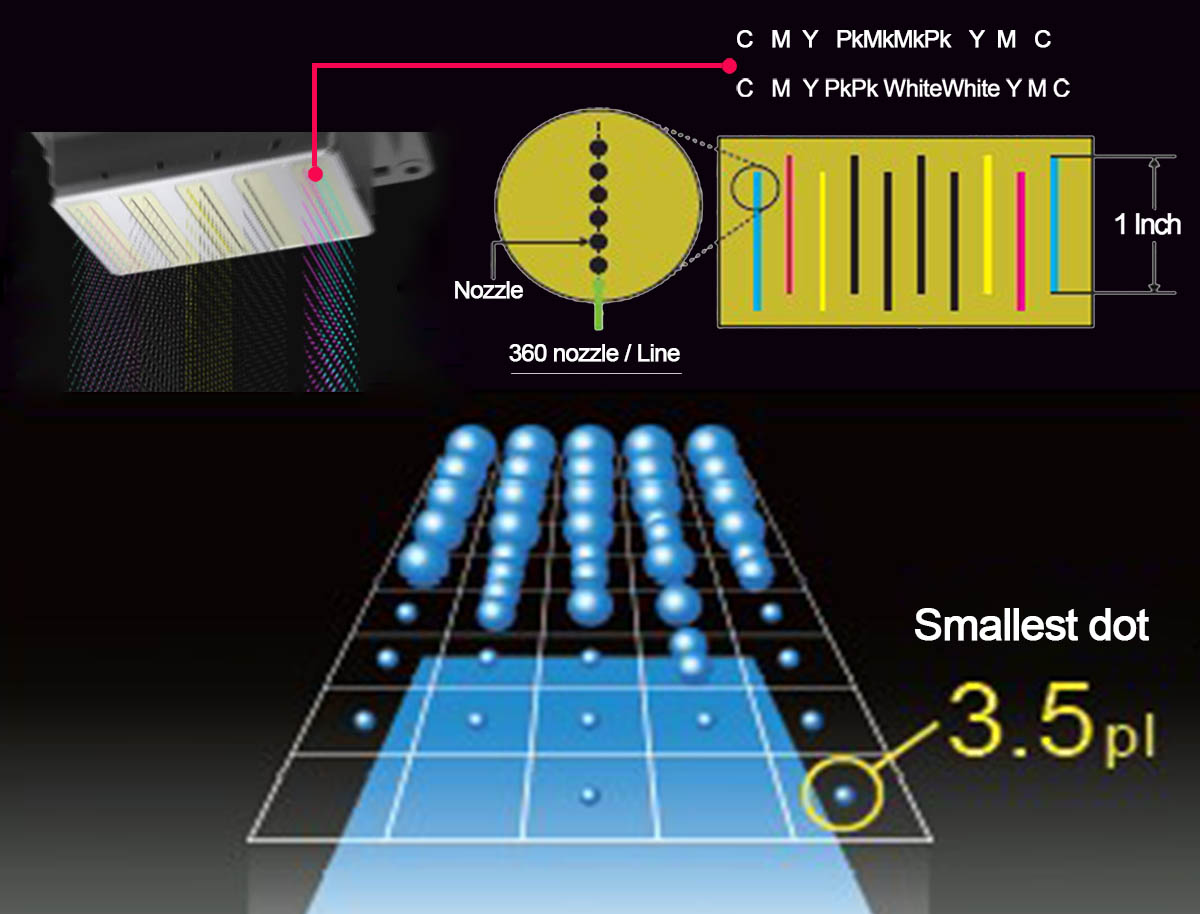

1. New revolutionary printing technology
Polar-Jet was built with newest T7000 printing technology, Mounted with newest advanced piezzo TFP print head. Variable size ink droplet technology, Smallest drop size 3.5piccolitters to get a grayscale printing result, 720 nozzle per color X 5 color, total 3600 nozzle, Maximum printing resolution 2880*1440dpi.

( This photo refered and marked from epson website)

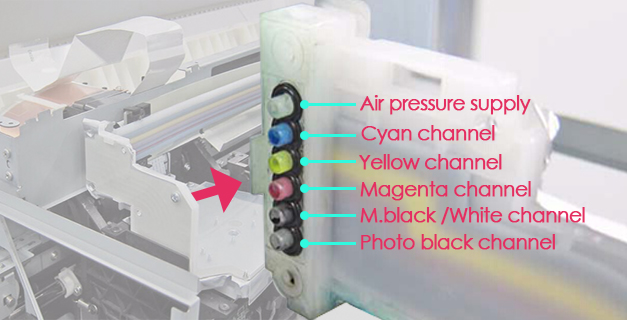

2. New ink supply system to anti-clog of print head.
Configure with negotive air supply system to the damper and print head kit to solve out the head clog problem. Can get a obvious effective for white ink printing especially and high speed printing. The old version epson model with DX5 print head as R1900, 4880, 7880... all are suppy the ink to the print head by syphonage way, so the white ink will be easy to clog as longtime settling. But with the negotive pressure system, the ink inside the damper and print head will be absorbed by the negotive pressure to keep a certain ink level without change. so it can prevent the ink clog, ink dripping and ink Oblique jet effectively.

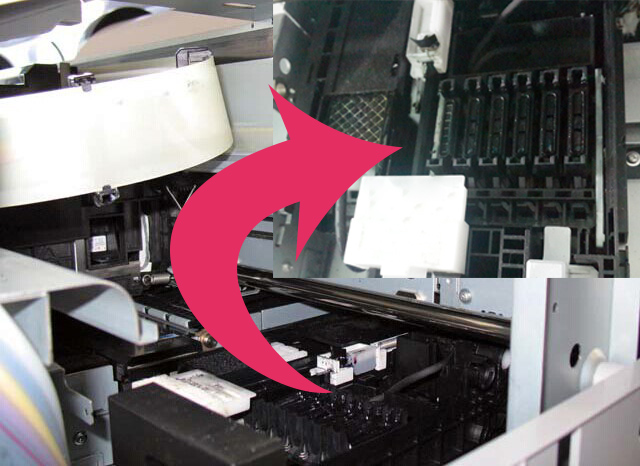

3. New designed keep wet cap station
The new designed cap station divide each cap for each color line individual, Before traditional printer model all use one cap for all color or half color, so it will cause the ink get mixed inside the cap station during keep wet at night. so the color near white head will be easy to be clogged, so the new cap station is designed specially for prevent the ink mixture and head clog.
4. No chips reset require

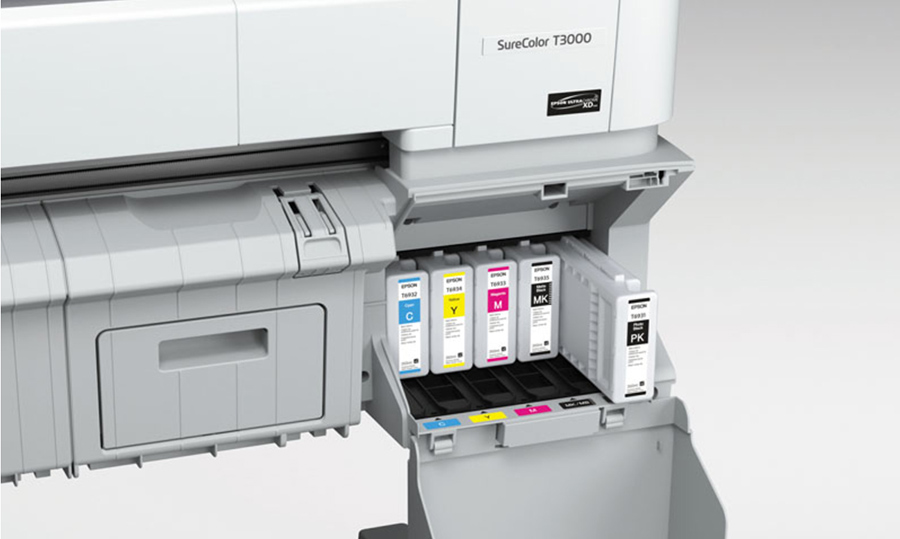

Focus invented chips reset system let you forget the problems of reset the ink cartridge chips, chips can not be detected... also 700ml big ink tank can reduce you job of refilling.
5. TCP/IP Ethernet cable interface
Print via TCP/IP Ethernet cable let the data processing faster than traditional USB 2.0/3.0 way
6. Supported by Wasatch professional Image raster RIP software
Wasatch SoftRIP helps users achieve superior color accuracy, high production speed, variable data customization, spot matching and cost savings with direct-to-garment inkjet printers, support ICC revise, ICC maker, Custom ink channel setting. Printing to dark garments has never been easier! With Wasatch's new Auto-Generation features selected, white ink will automatically be printed as an underlay of your image. Use the Wasatch Tracer to create a mask around your image to easily eliminate any image data that you don't want printed. This is ideal for images with background colors that are not a solid fill. This will save on ink consumption and keep the "hand" of your printed shirt light.

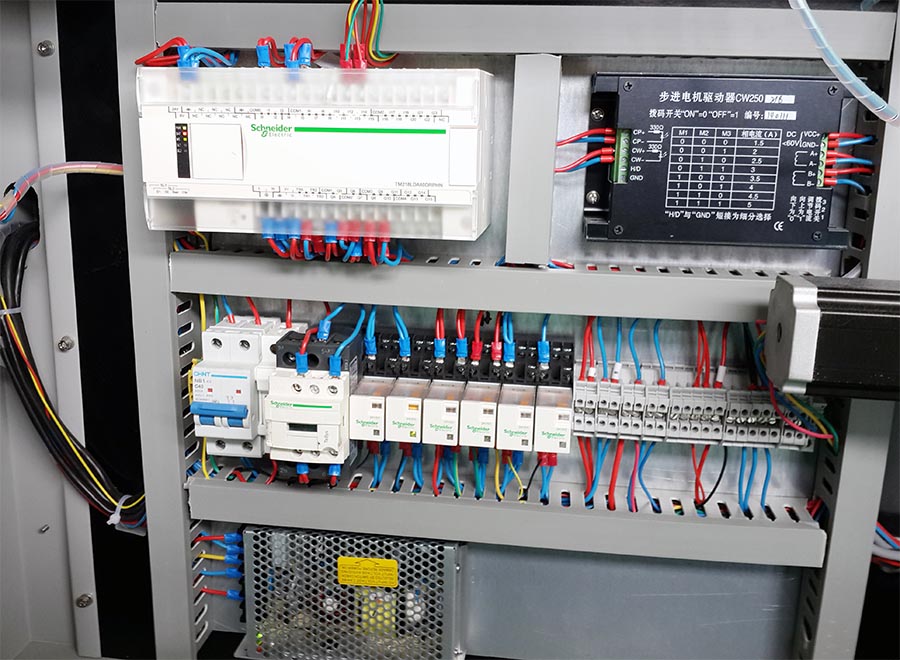

7. Intellective PLC control system
Polar-Jet use the intellective French Scheider brand PLC controller to control all motion signal as forward/backward, online/offline to ensure the reliable working.

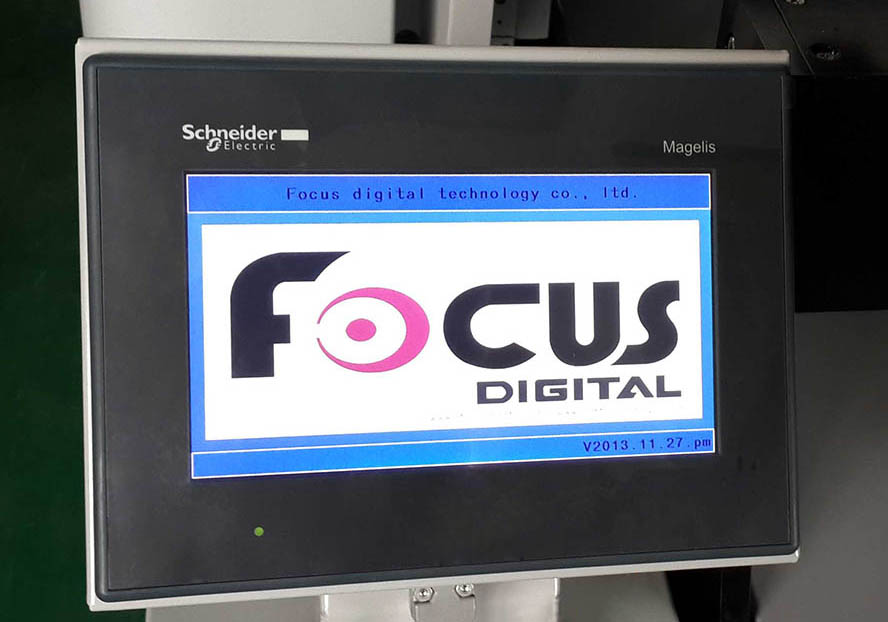

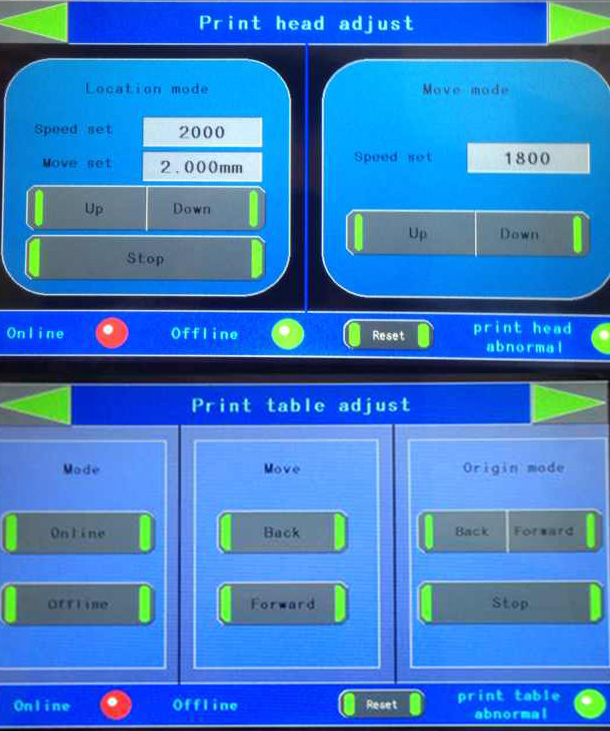

8. French Schneider brand control panel
The Scheider brand control panel make you opreate the machine easier and Humanity .

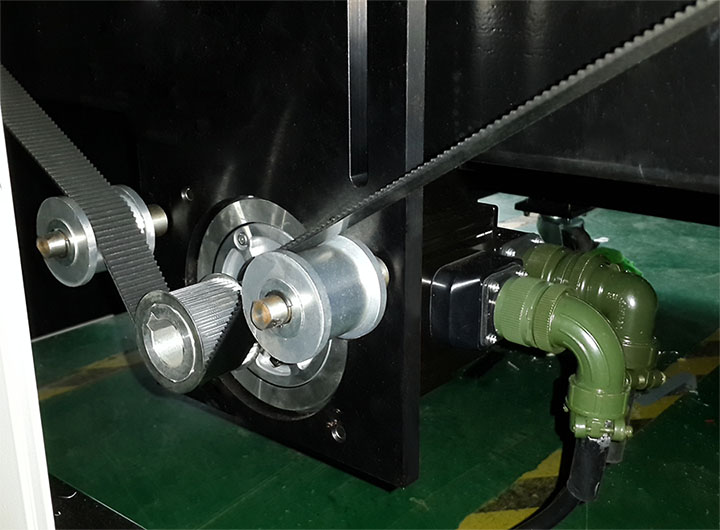

9. Mounted with Fuji 750W servo motor
The Fuji brand 750W servo motor was mounted at Polar-jet for drive the flatbed/ pallet backward/forward motion. Strong powerful and the open loop design make sure the flatbed motion with high precision.

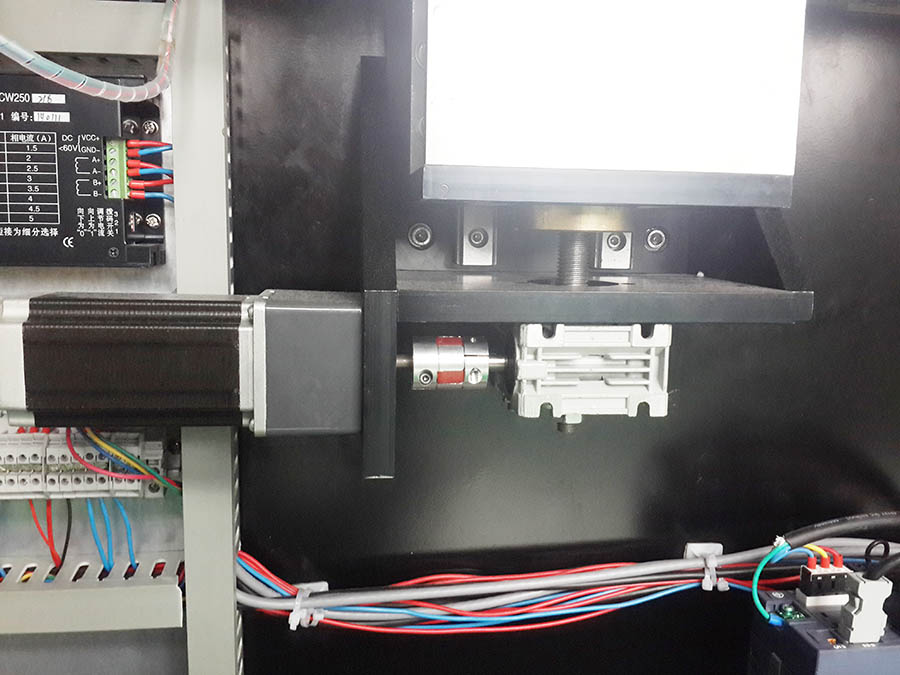

10. Automatic media thickness adjustment
Polar-Jet support maximum 80cm media thickness, just input the media thickness number to the control panel,

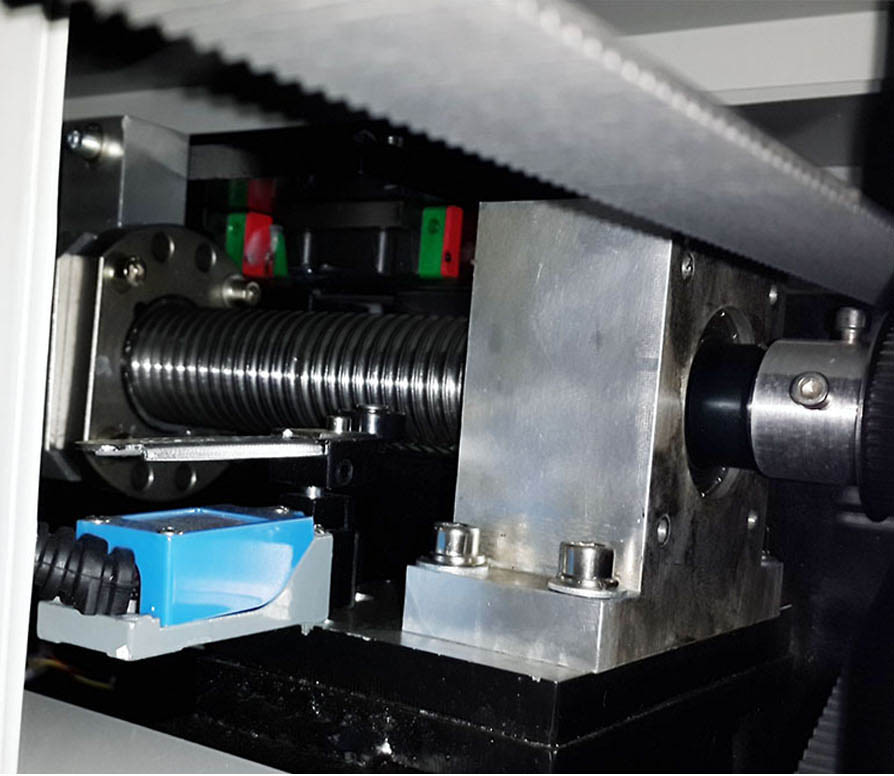

11. Duall ball screw & linear rail for Z axis motion
Ball screw and linear rail were mounted at both side of the flatbed to guide the top printer move at Z axis with high precision, ensure the printing table water level at any positon to get a equal printing quality.

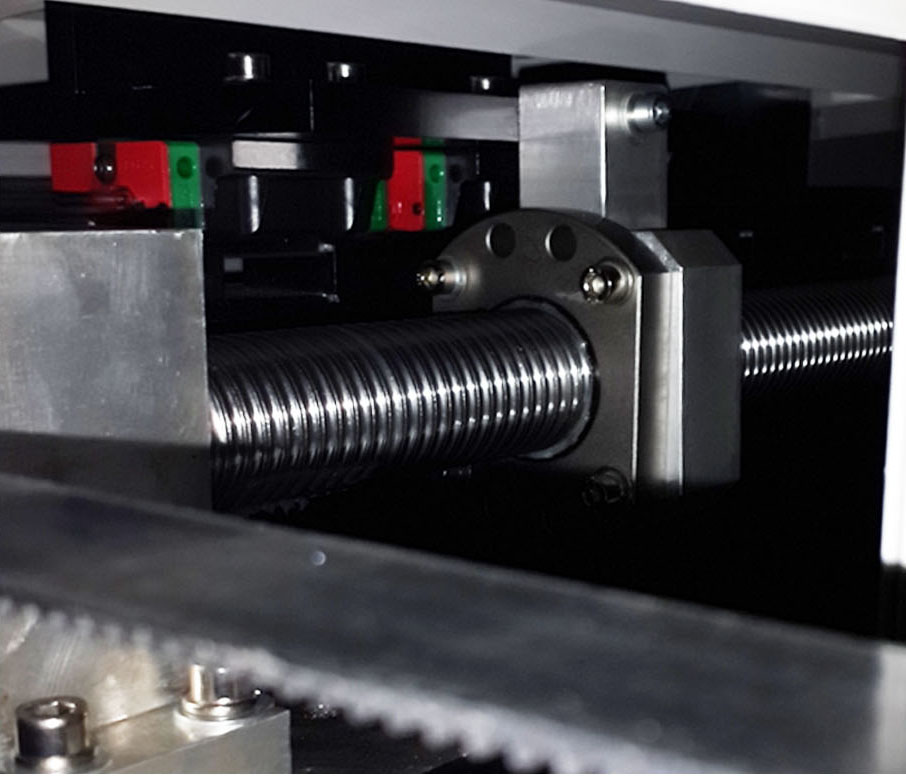

12. Dual ball screw and linear rial for Y axis motion
Printing table motion precision will effect the printing result directly, especially for print on dark underbase, as the rough motion precision will cause the printing image overlap. Polar-jet mounted with the Japan NSK brand ball screw combine with THk brand rail at both side for a high motion precision with error less than 0.05mm repeatedly.

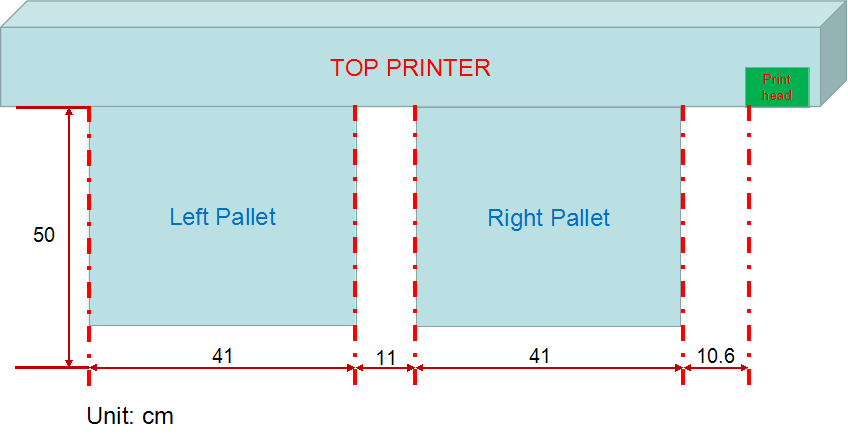

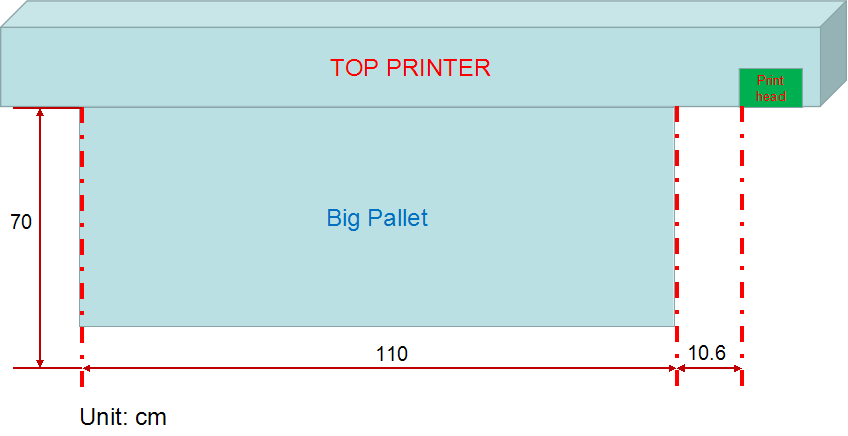

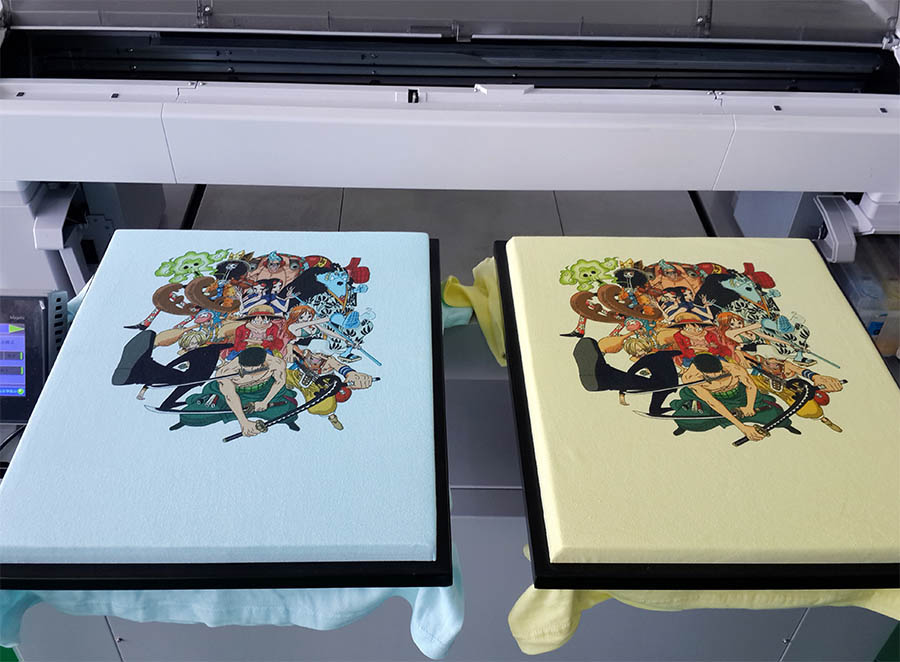

13. Easy-changing pallet
Polar-Jet support dual T-shirt printing pallet with size 40cm*55cm for each and big pallet with maximum printing size

Customer training

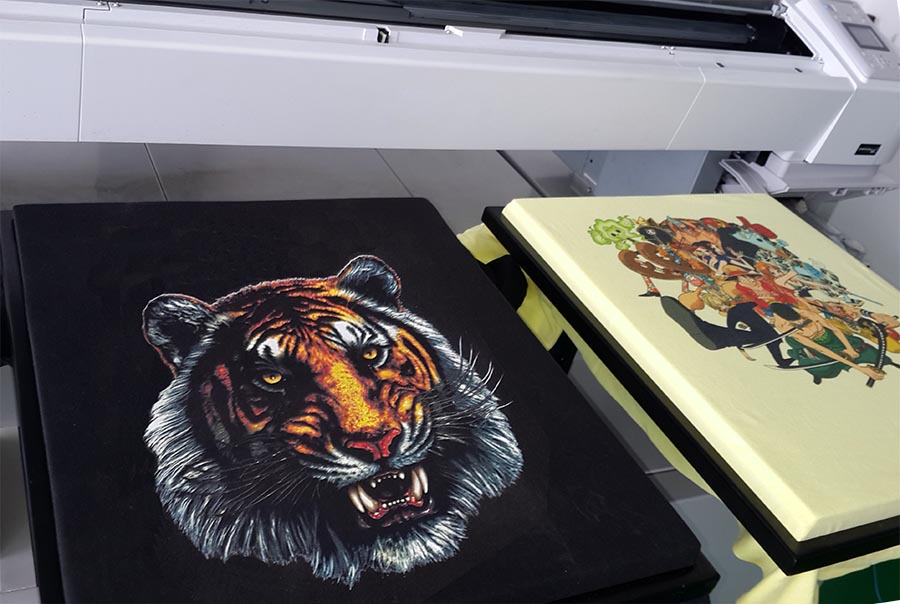

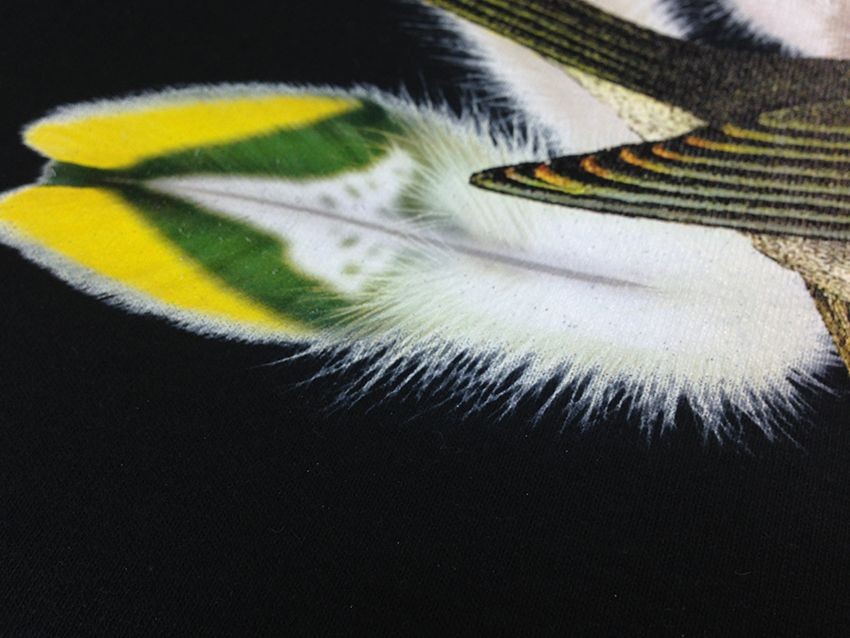

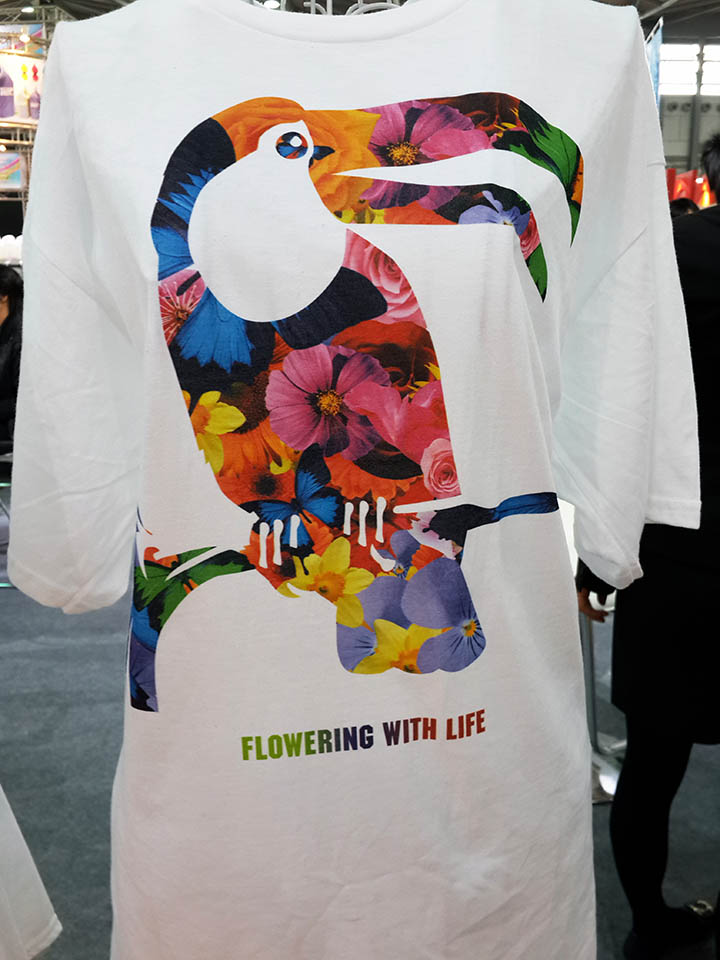

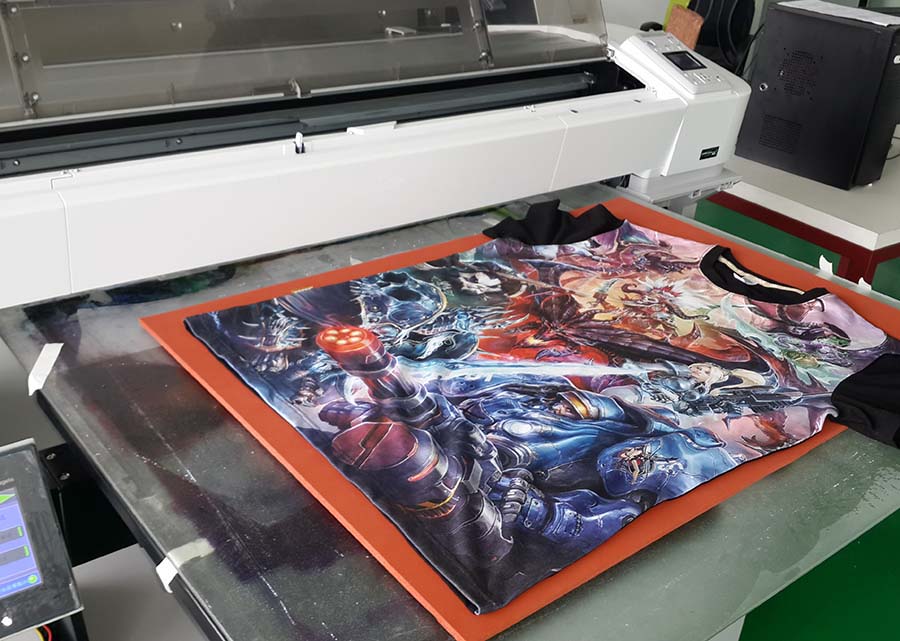

Printed sample
