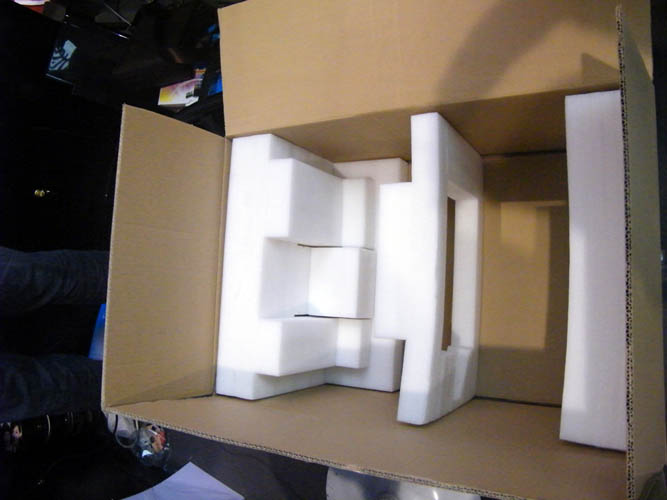

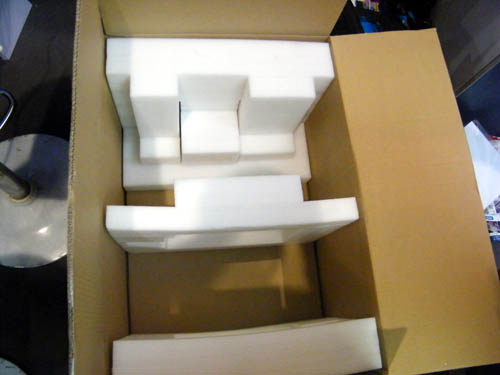

* Hightensile pearly foam package.

S-jet catalog download

       S-jet printing demo video          PLAY            Download

2. Technical features:

• High speed, 100-140 pieces / hour with12cm diameter CD/DVD disc.
• High resolution. max. resolution 5760*1440dpi.
• The newest fall continus disc loading system can prevent the tray slip errors to achive the high mechanial precision and short the printing time.
• 50 pieces disc unattended printing system short the time for load the disc and process printing iamge, make the printing more effective.
• Printed job can be anti water and scratch.
• Continus ink supply system make the printing cost only several cents.
• No need any pretreatment or post treatment as coating and heating, short the printing time and make the printed disc clean.
• The CD tray holder was made with high mechanial precision, the gap between the printed iamge and edage is equal at any cycle poition.

3. Specification:

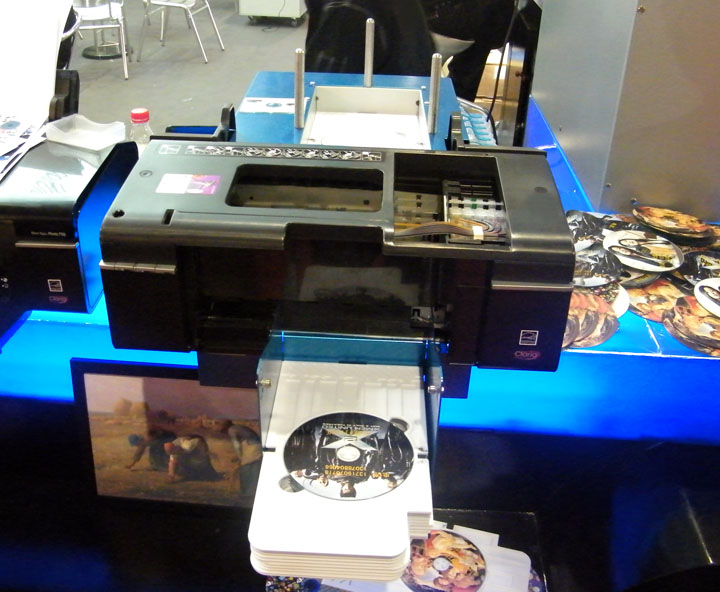

Model	Focus S-Jet CD/DVD disc printer
Printing size	A4 size (22cm*30cm)
Resolution	5760*1440 DPI
Printing capacity	50 pieces unattended printing
Printing speed	100-140 pices/Hour  (12cm diameter CD/DVD disk)
Model of print head	Piezoelectricity drop on demand inkjet technology
Nozzles of inkjet head	180*8
Color model	6 color (Yellow,Magenta, Cyan, Black, Light cyan, Light magenta)
Color matching	16.7million
Printing Ink	Eco solvent based (Anti scratch, anti-water)

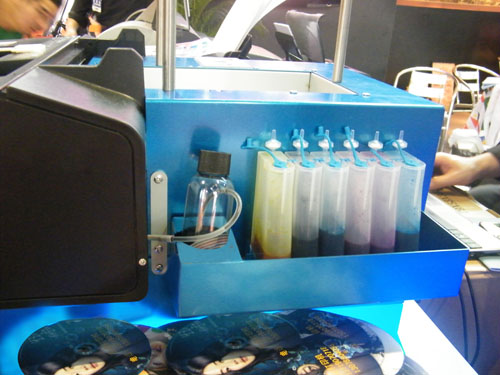

Ink supply system	Continus ink supply system
Color profile	Focus ICC color profile
Acceptable file format	JPEG/BMP/TIFF
Interface	USB2.0
Software	FocusRIP V2.4 version / Photoshop/ Coreldraw
Printing media	Printable-surface DVD¡ÀR and CD-R; standard or water-resistant / Name card

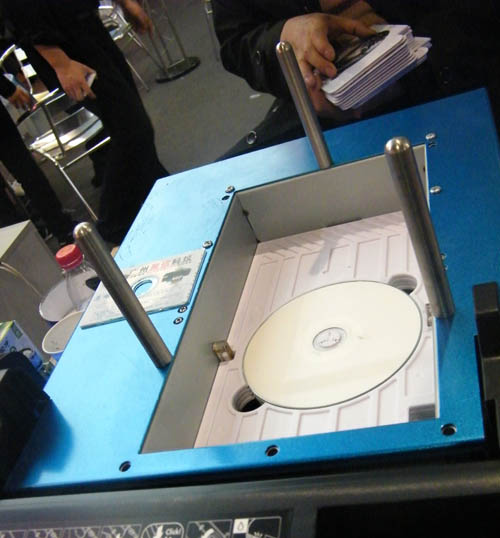

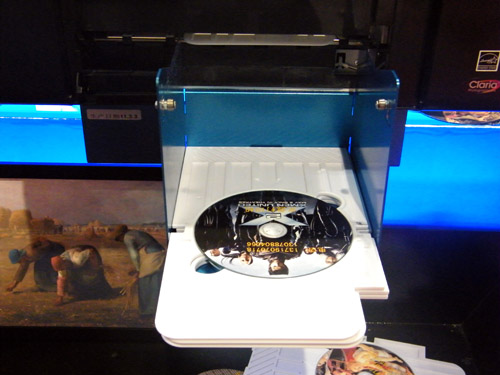

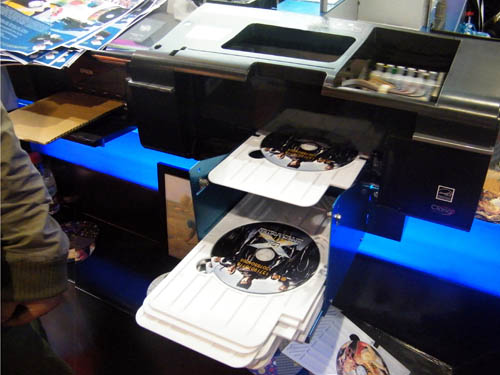

Media loading system	Automatic fall continus supply system
Operation system	Windows 2000/XP/Vista & Windows 7 or Mac OS X, 10.4 or higher
Temperature	20¡«30¡æ
Humidity	55¡«80%
Authentication	CE, ISO9001
Power	220V 50HZ/ 110V 50HZ
Machine size	65*42*28cm
Packing size	79cm*53cm*35cm
Gross w. / Net w.	25KG/29KG

4. Workflow

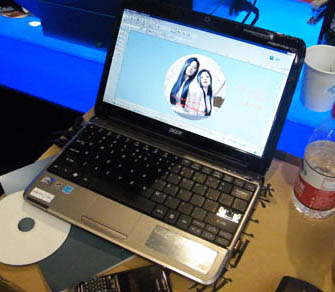

•        Prepare the iamge from Photoshop
•

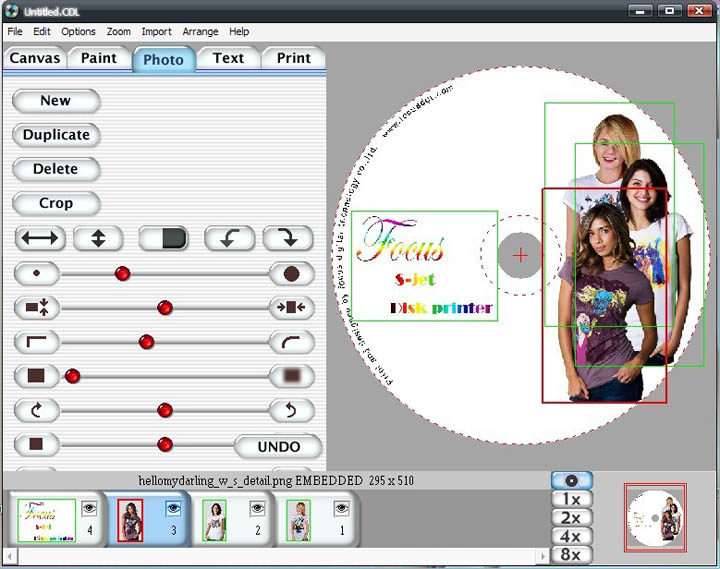

•       Load iamge to FocusEpt software.
•        Click here to learn more about FocusEpt software
•      Load the blank disc to SJet printer.
•

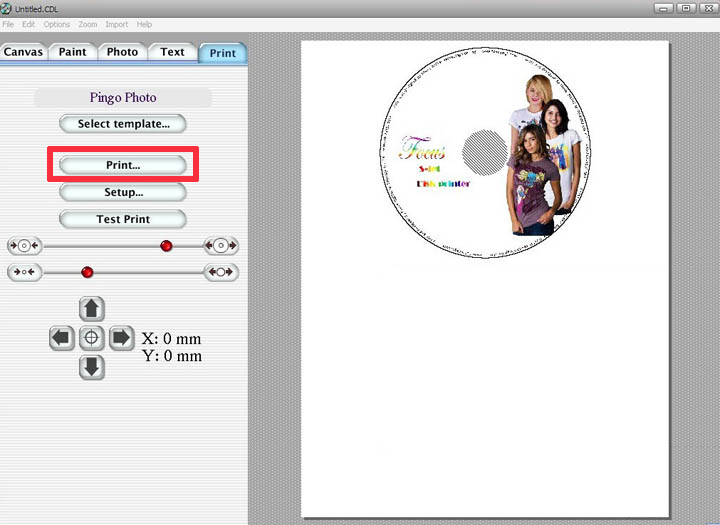

•      Start printing directly from FocusEpt.
•
•       Finished.

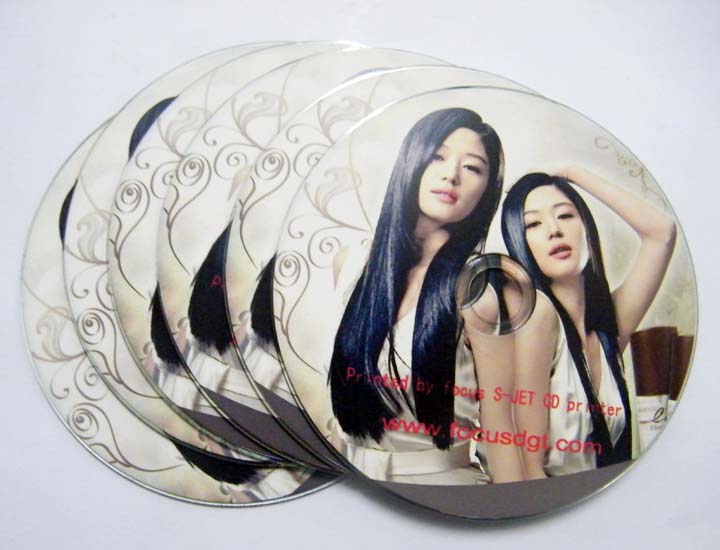

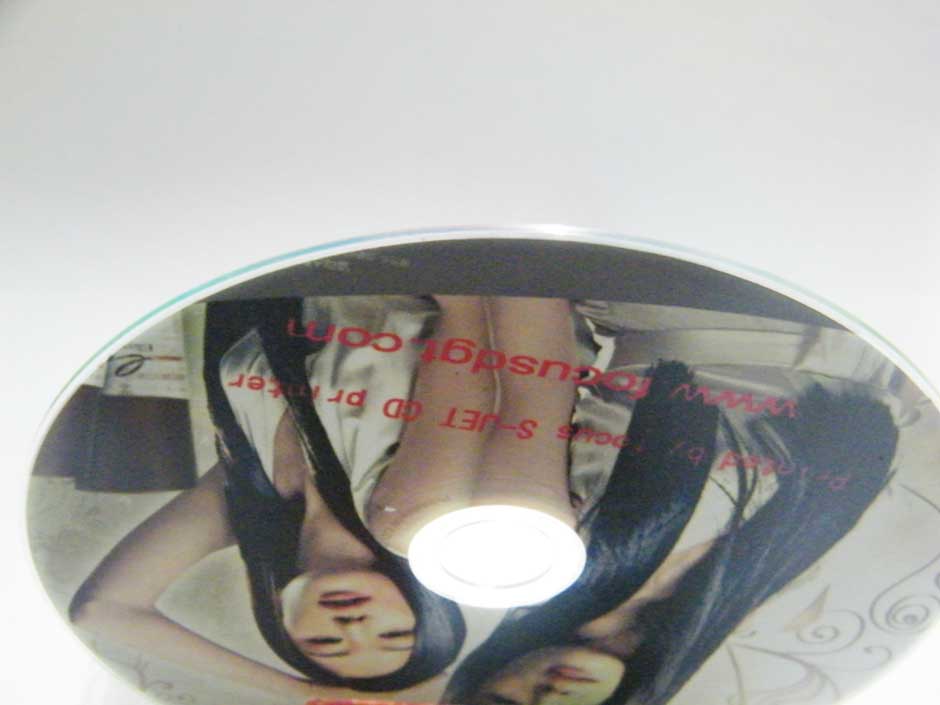

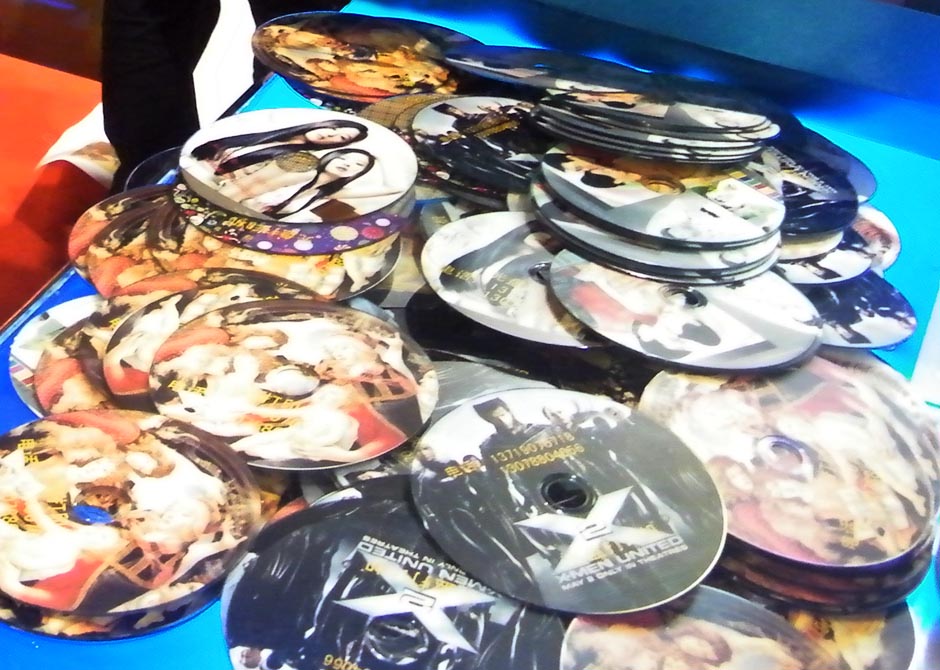

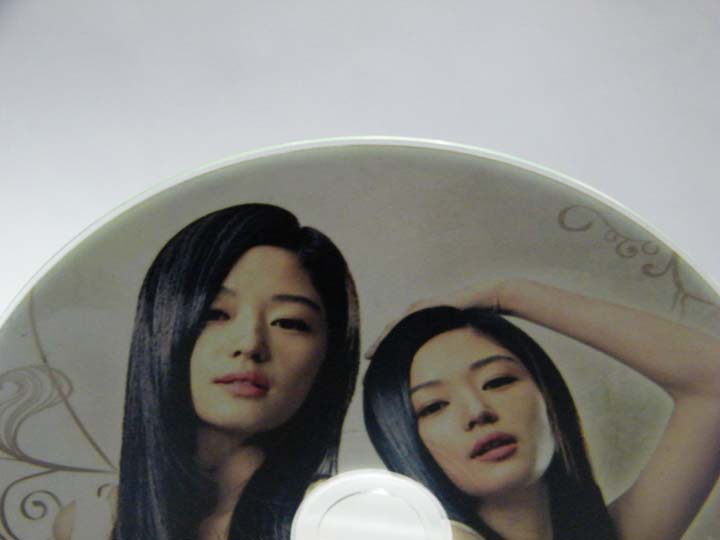

5. Printed sample.

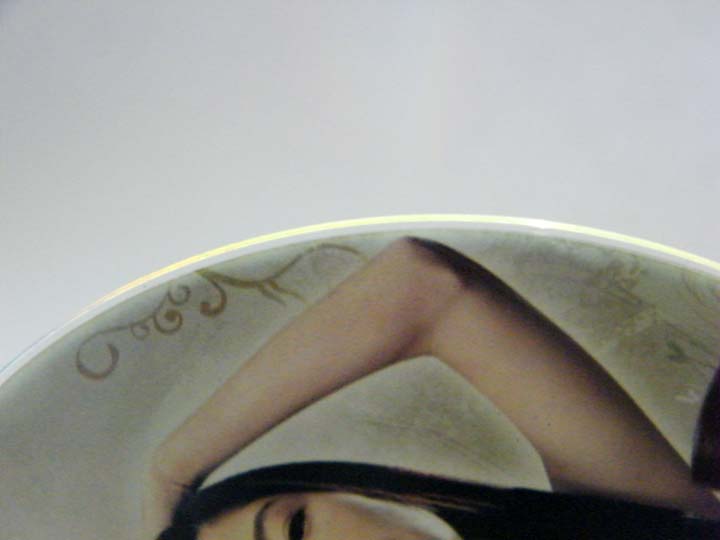

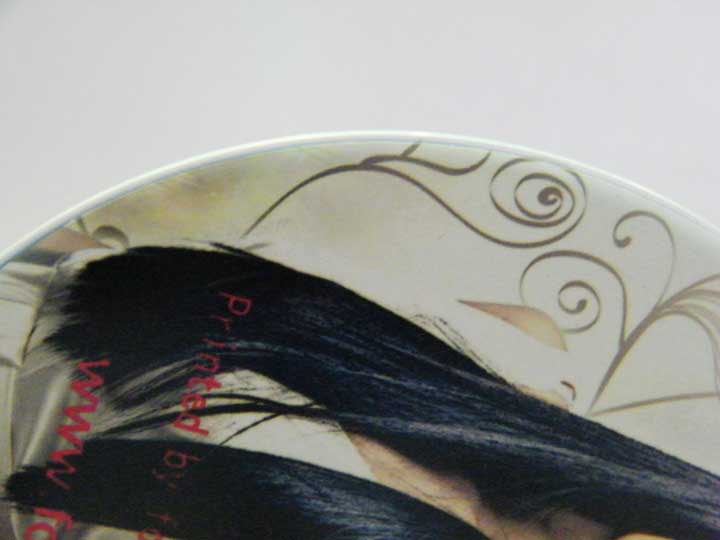

 * (The gap between the printed iamge and edage is equal at any cycle poition!)

......
