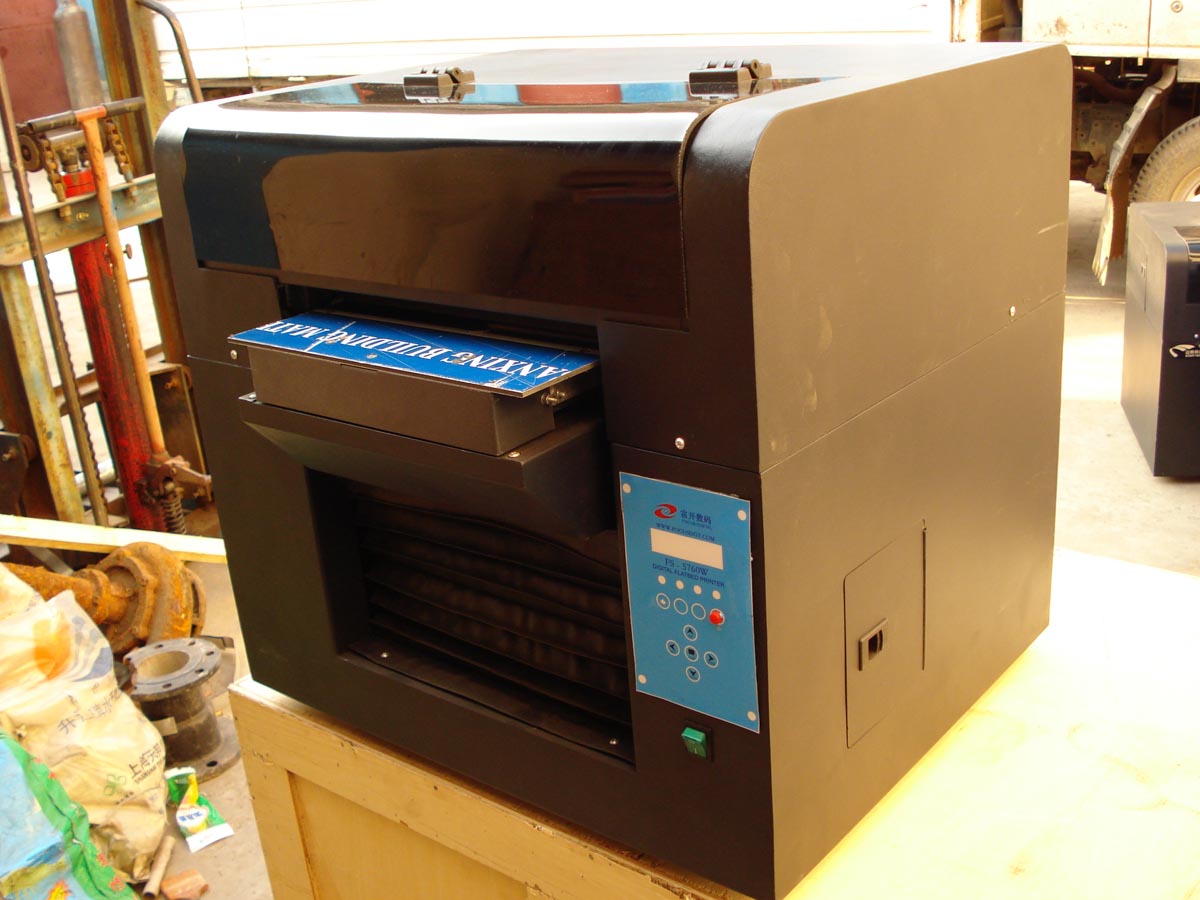

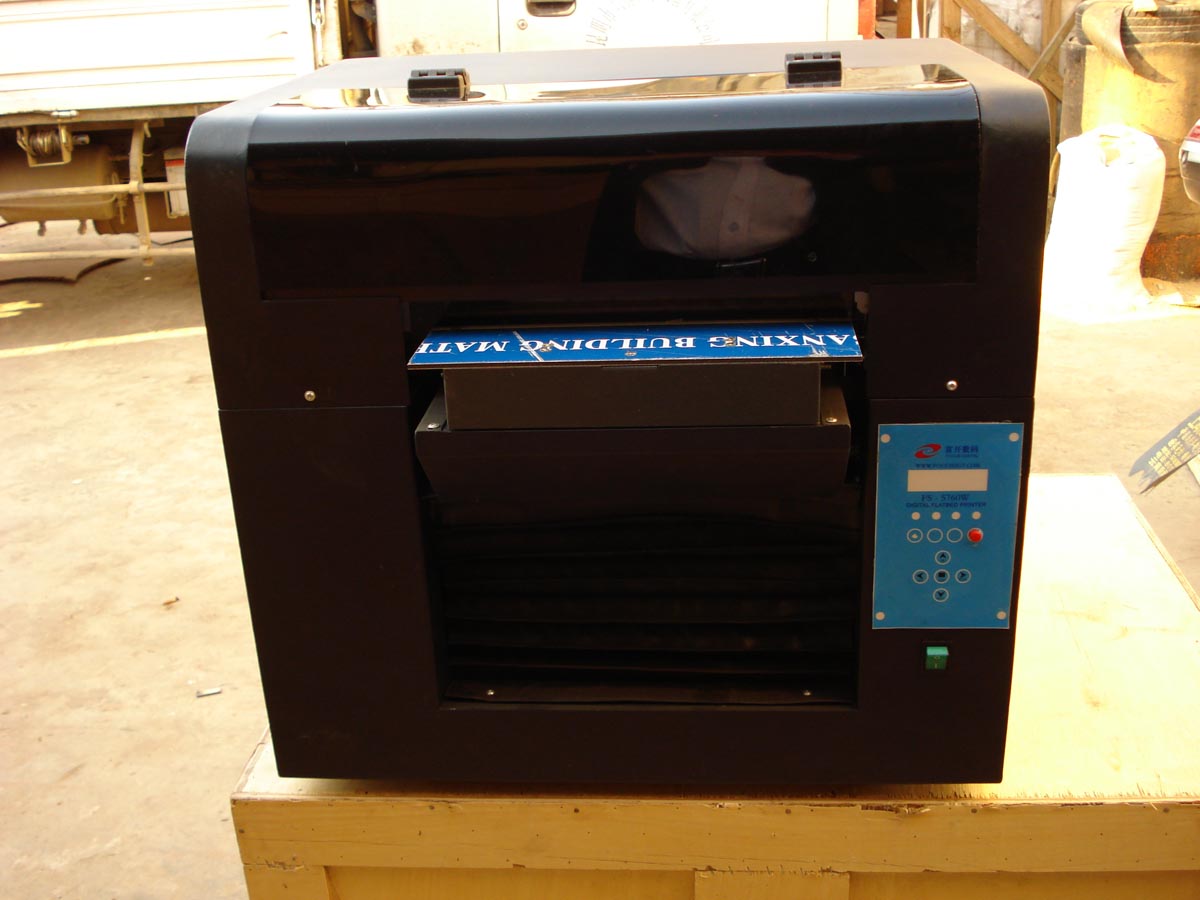

1. Real view:





Support white ink printing:
FocusRIP white Rip software:

 Click here to learn more about FocusRip White rip software
2. Technical Features:
<1>. It accepts printable objects height up to 20cm, weight up to 25KG,diameter of printed cylinder from 2cm to 14cm.
<2>. It can directly print on the surface of textile,crystal, wooden, bamboo, metal, stone, leather, PVC, PP, PE, ceramic tile, acrylic and so on.
<3>. It is very simple to operate this machine. Just normal workers can operate it well after brief training.
<4>. Instant image printing.
<5>. Low cost of printing image, less procedures of production.
<6>. Stable printing technology, it is good for numbered items or tailor made such as gift field.
<7>. Movable human body mechanics working table, can achieve operation with any angle and save the working room.
Over the time we have incorporated improvement to suit our customers on their feed back and our constant research and development. The third generation of Focus digital Flatbed machines has made the following improvements over its earlier counter parts :
<1>. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment, user friendly design makes the operation more convenient.
<2>. Printable object height can be up to 20cm.
<3>. Intelligent Anti scratch printhead system,ensures the life of printhead last longer which reduces the cost of printing. This patent for this is under process.

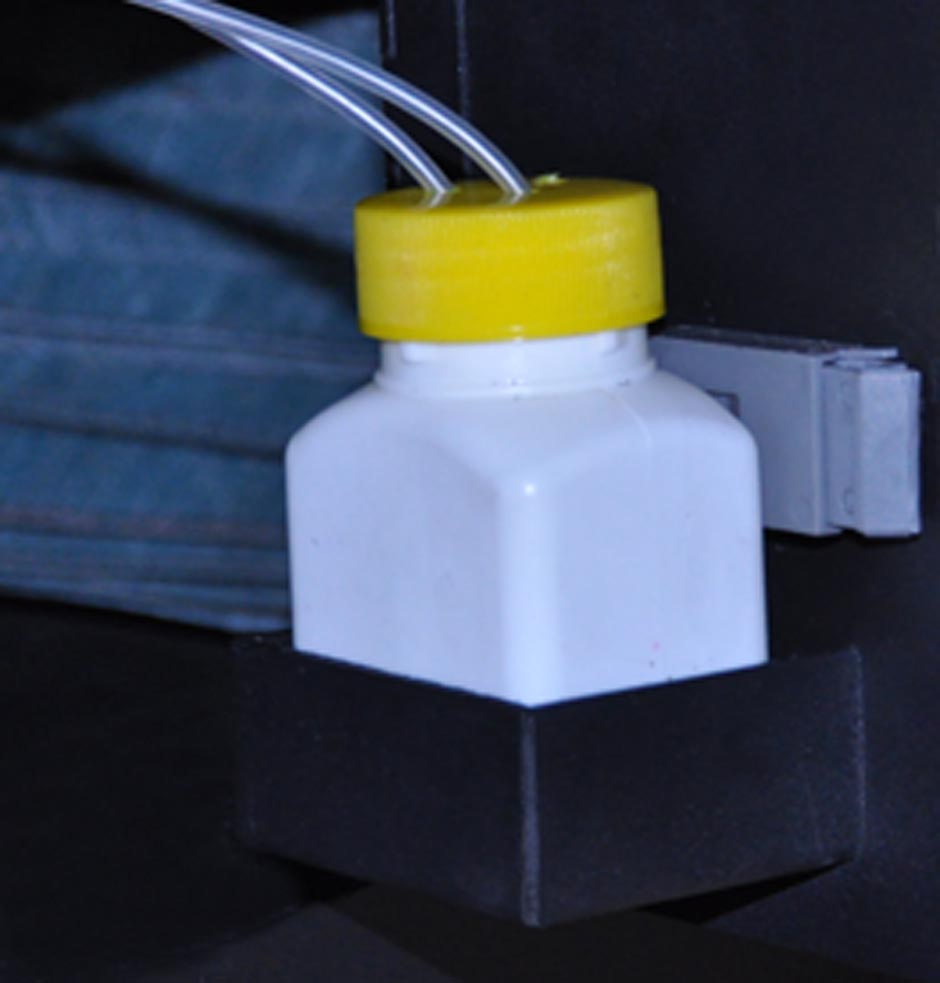

<4>. Two levels ink filter system ensures printheads will not be clogged easily.
<5>. Automatically examines the height of a transparent object.
<6>. Excellent after sales services, maintenance solution with full range of accessories.
3. Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing
<4>. Garment,Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image
etc...
It is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
4. Specification:
|
Focus A3++ Rainbow-jet
|
|
Printing size
|
330mm*600mm
|
|
Printhead
|
Piezo Inkjet 1440 Nozzles
|
|
Print Color
|
Color model: 6Color: Cyan. Magenta. Yellow. Black, Light Cyan, Light magenta
White model: CMYK+WW: Cyan, Magenta, Yellow, Black, White, White
|
|
Printing Direction
|
Bi-Direction
|
|
Printing Speed
|
1440DPI model: A4 size/101s
|
|
Max. height of object
|
20CM
|
|
Max. Printing resolution
|
5760DPI*1440DPI
|
|
Ink Tank Volume
|
150ML
|
|
Ink
|
Oil Base Ink / Dye base ink
|
|
Height Adjust
|
Automatic/Manual Adjust
|
|
Printing Object Height Examine
|
Automatic Detecting
|
|
Printhead Protection
|
Intelligent Self Protect System
|
|
Power
|
110-220V 50-60HZ 75W
|
|
Printing Interface
Pre-heating
|
USB2.0/LTP
Available
|
|
Operation System
|
Windows 98 / Me / 2000 / XP / XP x64 / Vista*4
MacOS X10.2.8 or later(PPC&Intel CPU)
|
|
Working Environment
|
10-35 C,20-80 RH
|
|
Max.printing weight
|
25KG
|
|
Printer Size
|
89CM*75CM*56CM
|
|
Shipping Size
|
103CM*98CM*65CM
|
|
Printer N.Weight/G.Weight
|
98KG/120KG
|
Note : The actual physical parameters requested to prevail, as do change without prior notice.
5. Factory views:
......
|
