Ark-jet

· Product Details

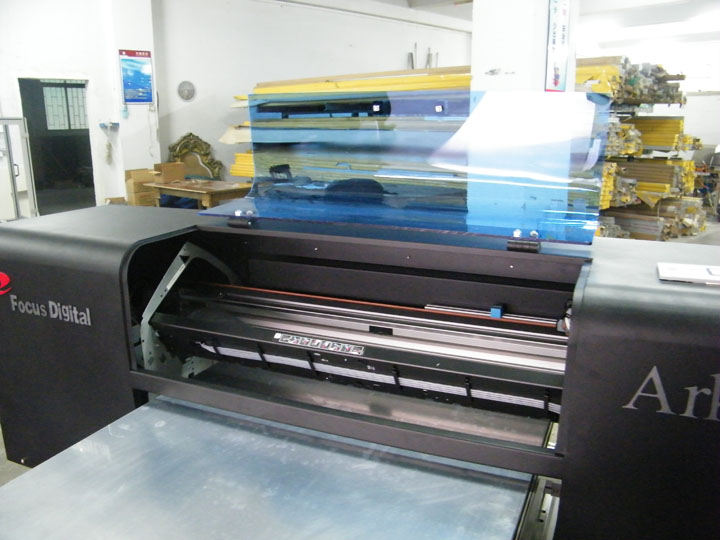

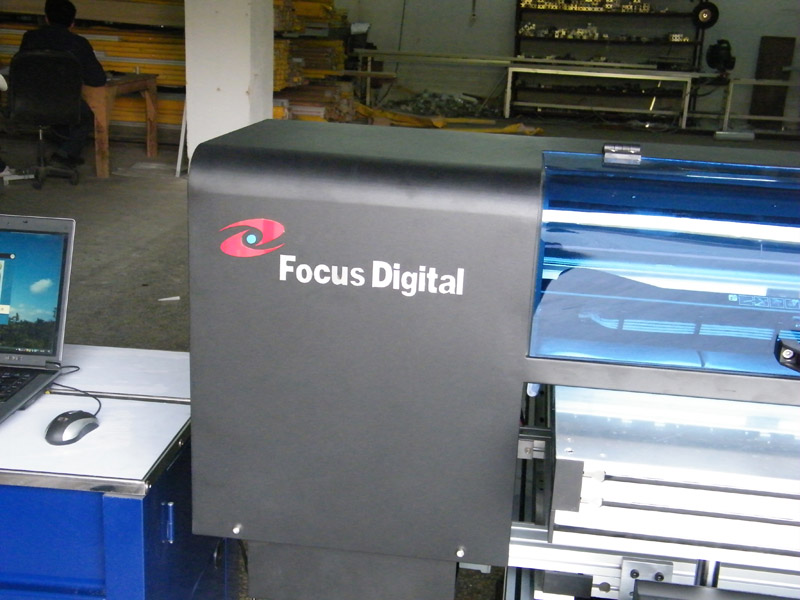

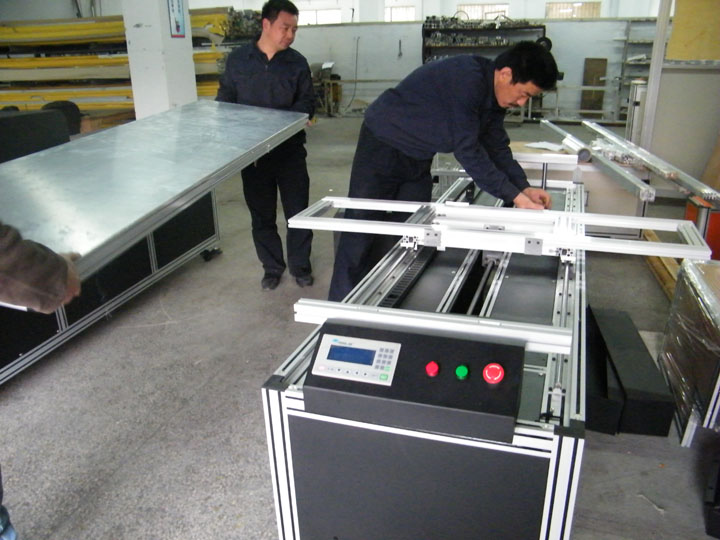

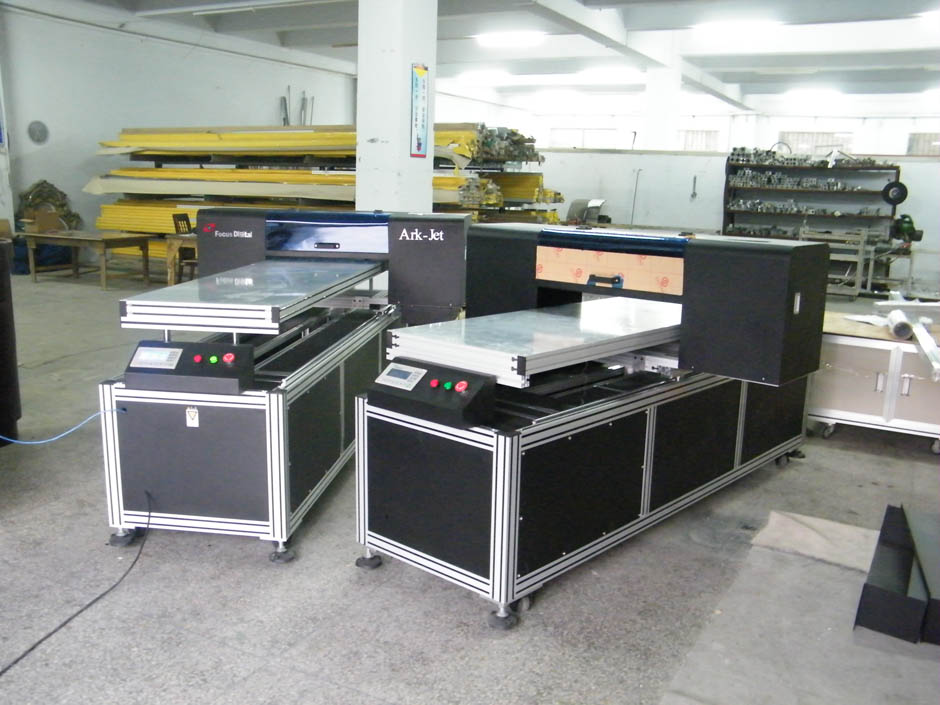

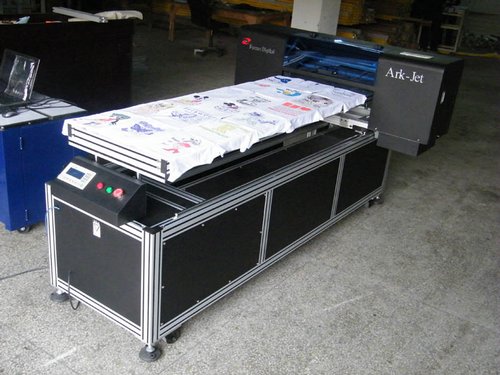

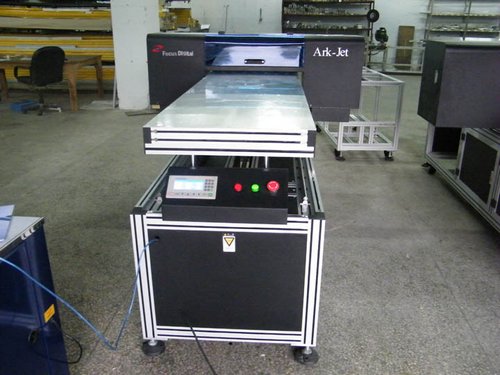

Real view:

Ark-Jet pdf catalog download
Ark-jet online demo video PLAY Download
Black / White hard material printing video PLAY Download

Black / White T shirt printing video PLAY Download

1. Specification:

Focus A1+ Ark-jet

Printing size

600mm*1650mm (Can be made custom)

Printhead

Piezo Inkjet 672 Nozzles technology

Print Color

8 Color: Cyan. Magenta. Yellow. Black. Light Cyan and Light Magenta.Light black. Light light black

White printing: CMYK+WWWW

Printing Direction

Bi-Direction

Printing Speed

1440DPI model: A4 size/ 90s

Control pannel

Touch pannel

Max. height of object

15CM

Max. Printing resolution

2880DPI*1440DPI

Ink Tank Volume

150ML

Ink

Oil Base Ink / Dye base ink / Textile DTG ink

Height Adjust

Automatic/Manual Adjust/ Red-ray control

Printing Object Height Examine

Automatic Detecting

Printhead Protection

Intelligent Self Protect System

Power

110-220V 50-60HZ 75W

Printing Interface

USB2.0/LTP

Operation System

Windows95,98,NT,2000,XP,MAC

Working Environment

10-35 C,20-80 RH

Max.printing weight

25KG

Printer Size

2500MM*1200MM*1100MM

Shipping Size

2650MM*1400MM*1300MM

Printer N.Weight/G.Weight

240KG/360KG

Note : The actual physical parameters requested to prevail, as do change without prior notice.

2. Technical features:

1. Universal popular design.

2. High temperature oxidation treatment of paint, prevent color off and anti-scratch.

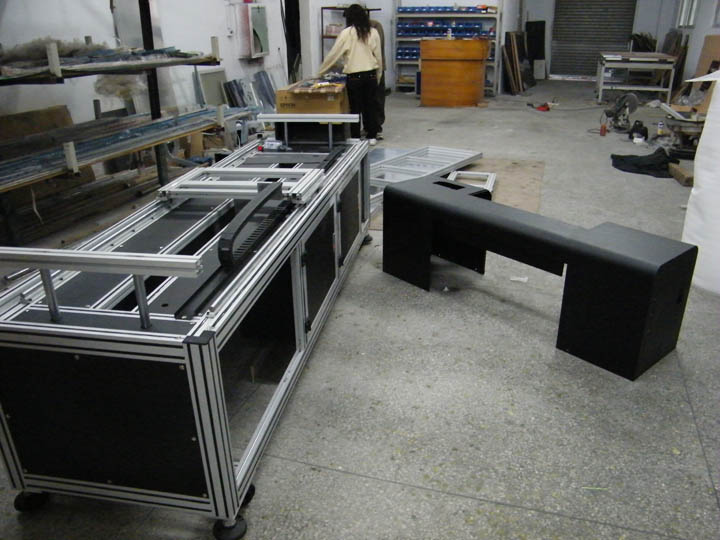

3. Strong mechanical making, 5mm thickness metal frame, 20mm thickness aluminium plate flatbed, all mechanical spareparts made from high quality aluminium, insure all parts working stable without distortion and flatbed moving without shake and excursion after longtime working.

4. Grinding treatmented ball screw guide rail go with dual cylindrical rail for Y axis motion. Driver the flatbed motion with high precision.

5. Servo motor with adjustable driver can let the Y axis flatbed moving get precision by 0.01mm. Compare with the step motor, the servo motor can achieve the recycle motion diagnose. It can make the printing very stable and got higher resolution printing. even 5# words can be printed out clearly.

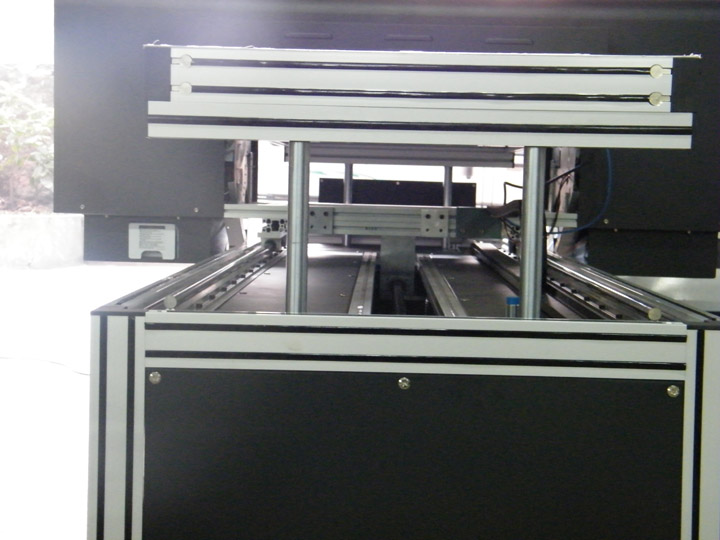

6. Four pieces T type screw guide go with copper nut. make the Z axis motion stable to achieve the printing flatbed surface level on any position.

7. Made in France bearing go with high strength cylcular belt, extend the printer working life and reduce the working noise.

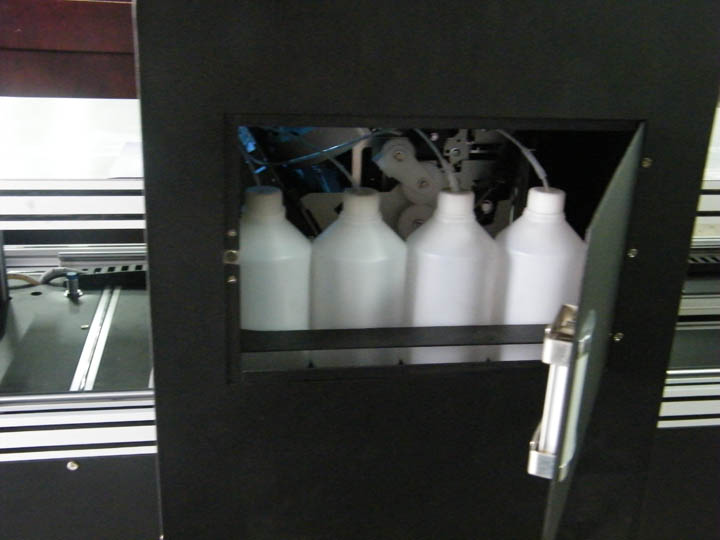

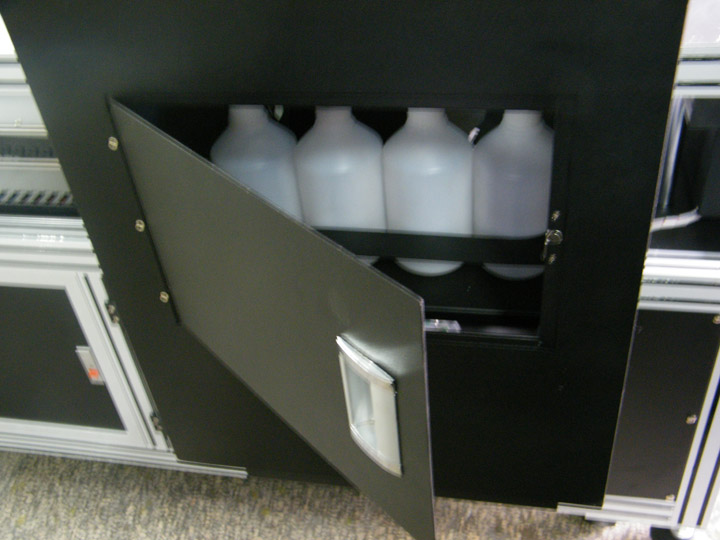

8. Newest bulk bottle ink supply system, no need to change the ink cartridge any more, just change the ink bottle when replace the ink and refill the ink.

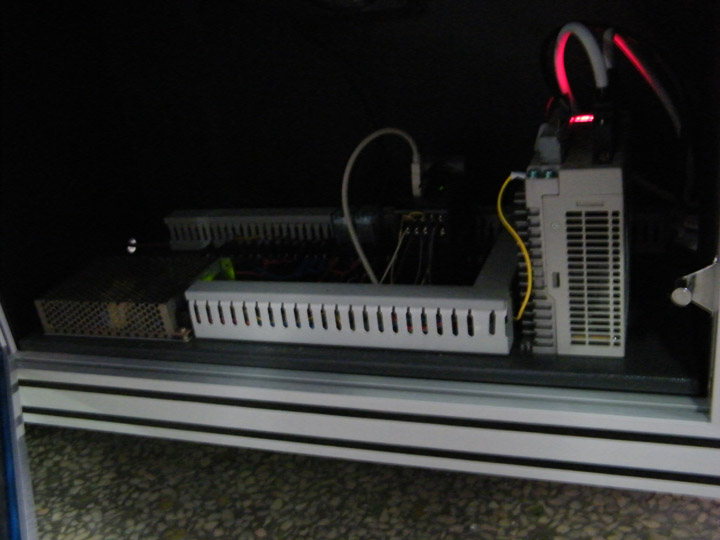

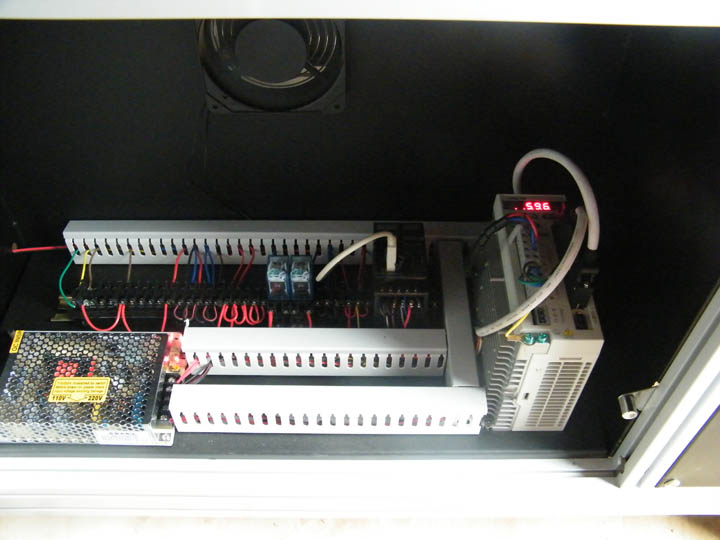

9. Industrial PLC control system is the heart of printer, Before we use the single chip control system, so if any problem will cause the print error, now we use the PLC control system, It is a special alone control center, can dispatch all the working command to different electronic parts separately , and get worked information back. Then process and check itself, also it have self protection problem. Even any problem happen, the PLC will stop for protect the printer and prevent the print head, electronice board and other electronic parts damage. So it is easy to find out the problem and repair it even any problem happend.

--- (Click here to learn more about "PLC" control system)

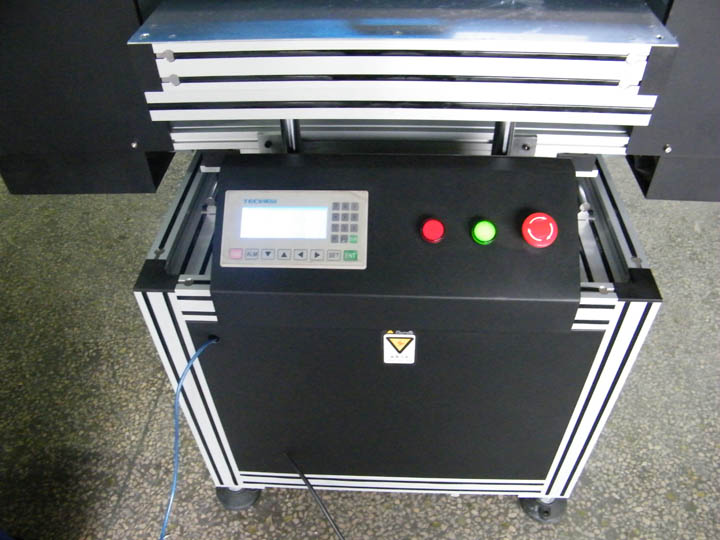

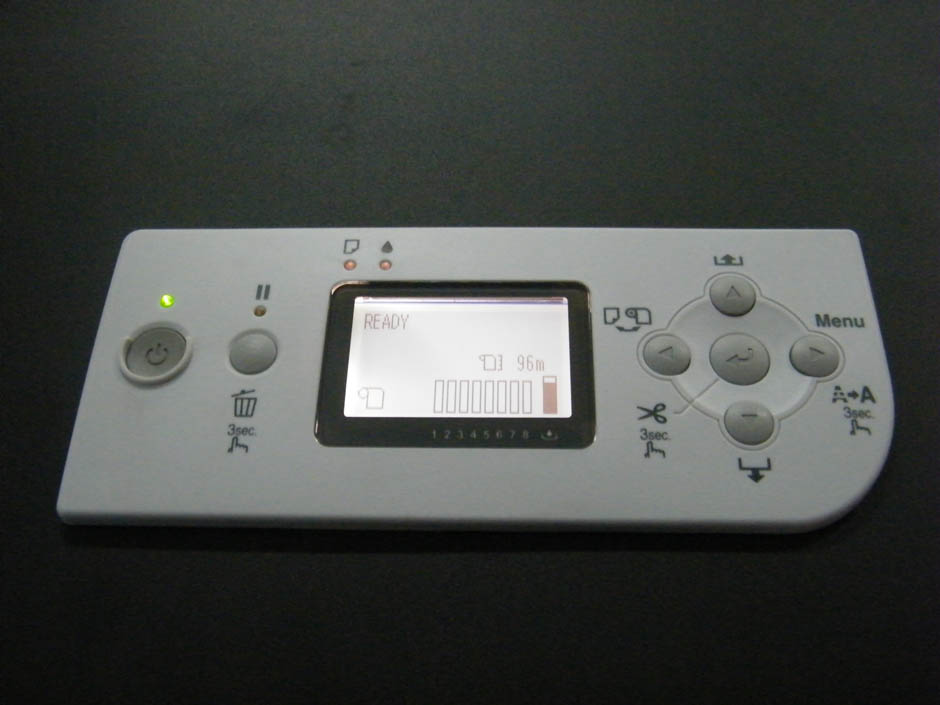

10. High quality made touch screen control pannel.

11. Automatic up and down limit detecting by industrial red ray sensor. Can prevent the print head and flatbed scratching during printing.

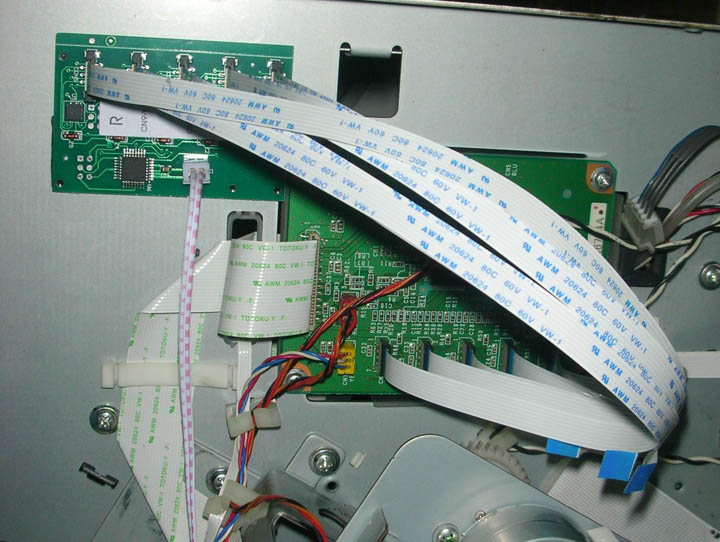

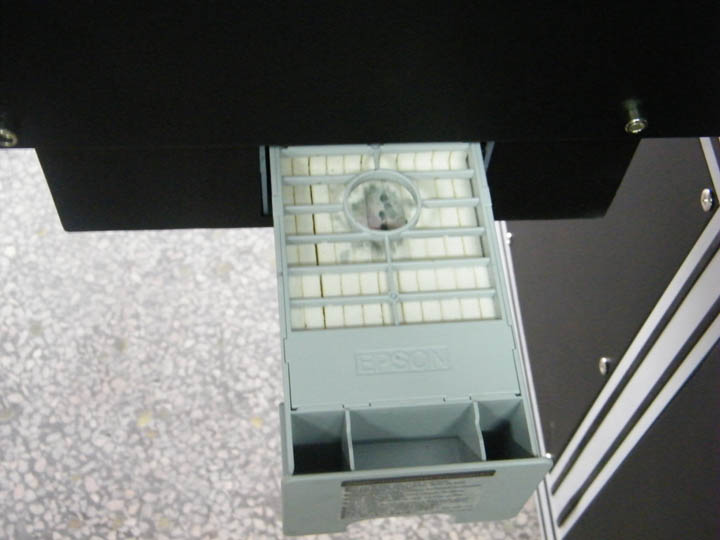

12. Focus newest created ink carriage chips reset system and waste ink pad reset system. Can remove your headache for printer can not recognize chips.

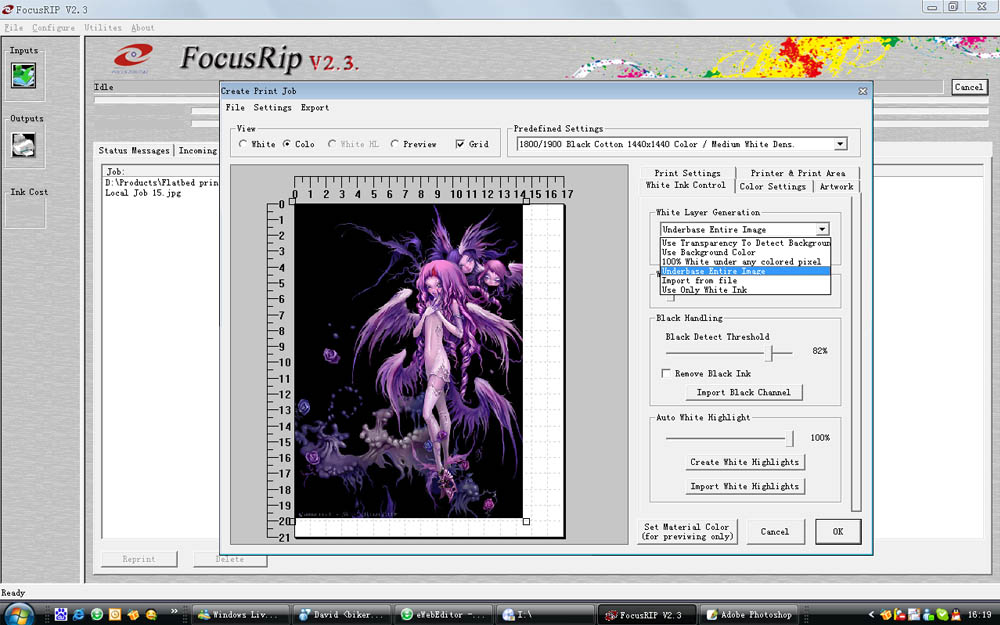

13. Matching Professional FocusRip white rip and printing software, Get better graphic raster and rapid result while printing with white ink. Powerful function such as clor management, color channel divide management, ICC optional, Whiteness adjustable.
