2. High temperature oxidation treatment of paint, prevent color off and anti-scratch.

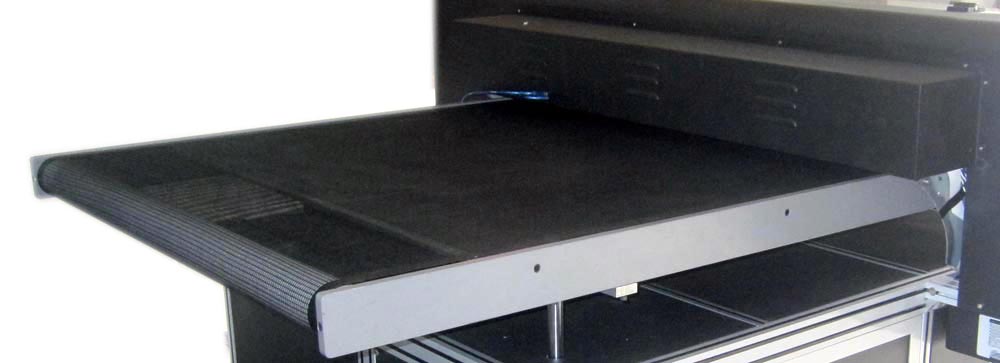

3. Strong mechanical making, 5mm thickness metal frame, 20mm thickness aluminum plate flatbed, all mechanical spare parts made from high quality
aluminum, insure all parts working stable without distortion and flatbed moving without shake and excursion after longtime working.

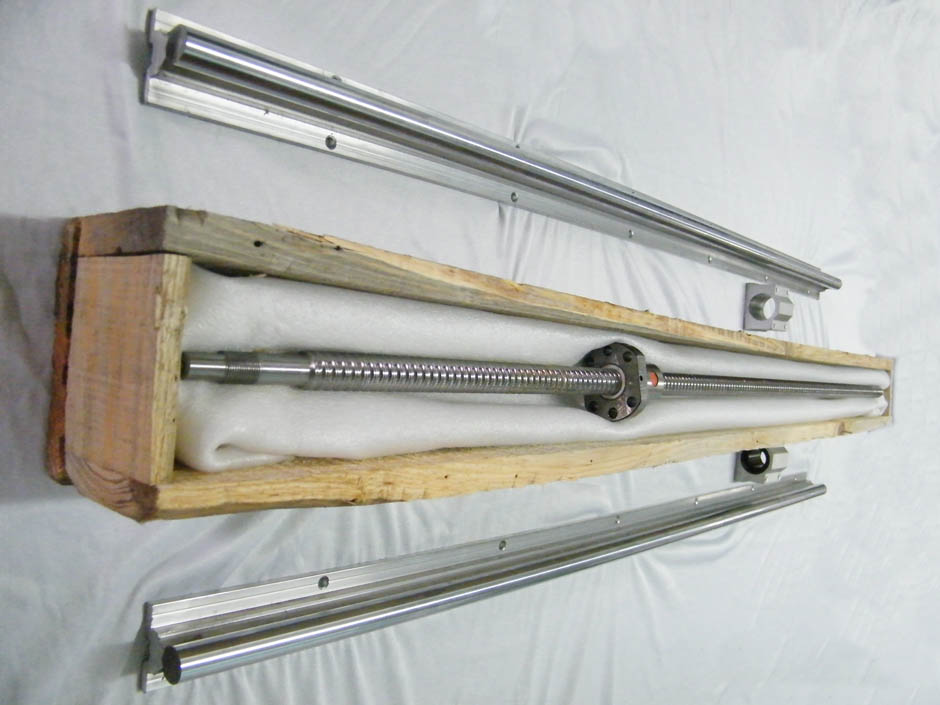

4. Grinding treatmented ball screw guide rail go with dual cylindrical rail for Y axis motion. Driver the flatbed motion with high precision.

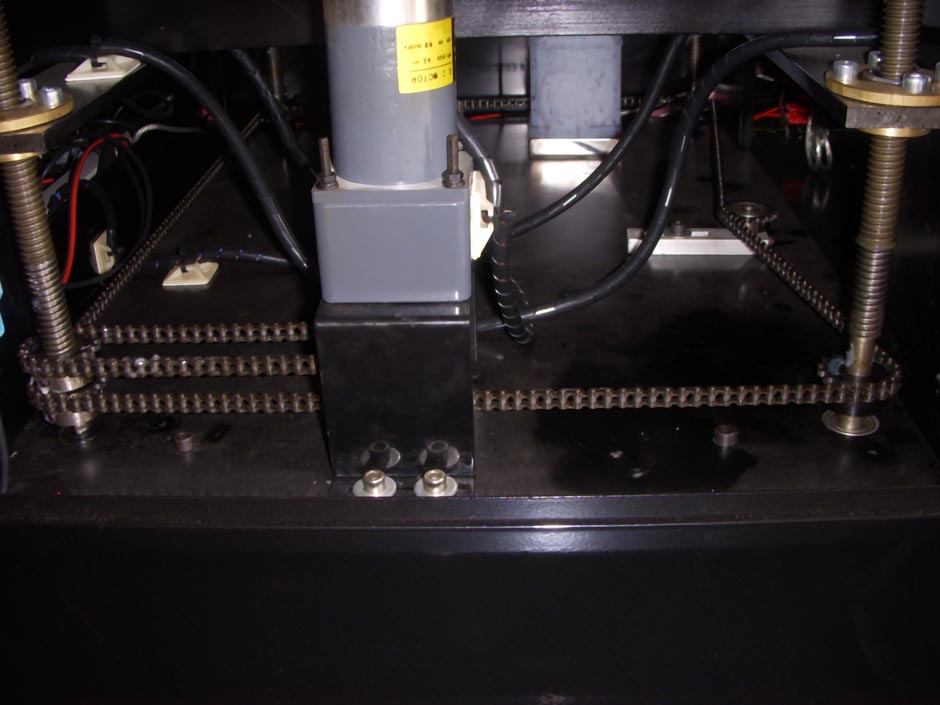

6. Four pieces T type screw guide go with copper nut. make the Z axis motion stable to achieve the printing flatbed surface level on any position.

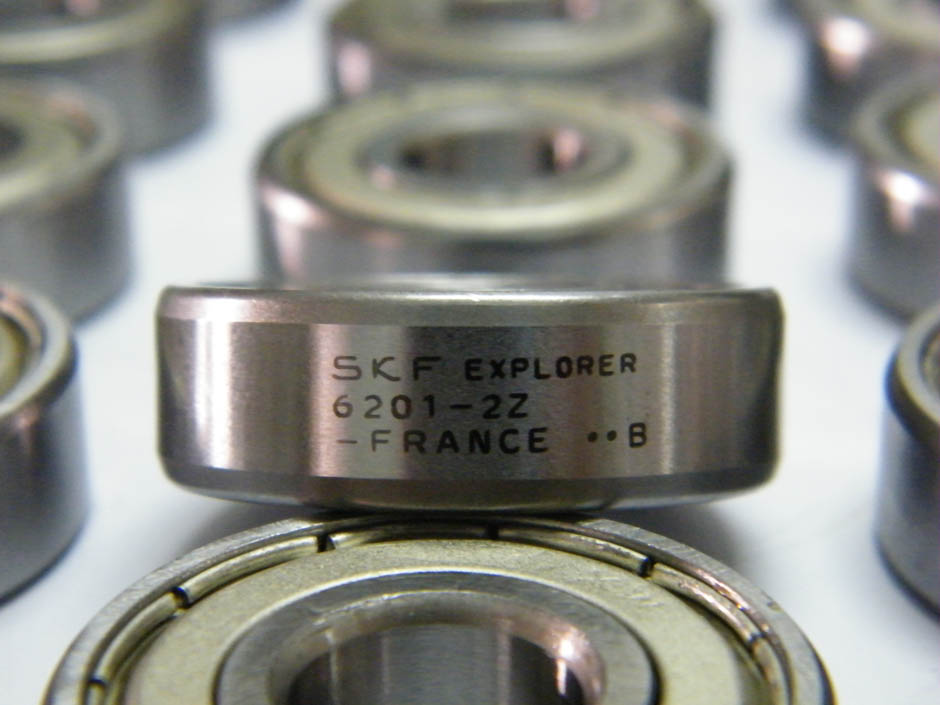

7. Made in France bearing go with high strength pinion and rack motion system, avoid if use the belt motion broken and hard to repair problem, extend
the printer working life and reduce the working noise.

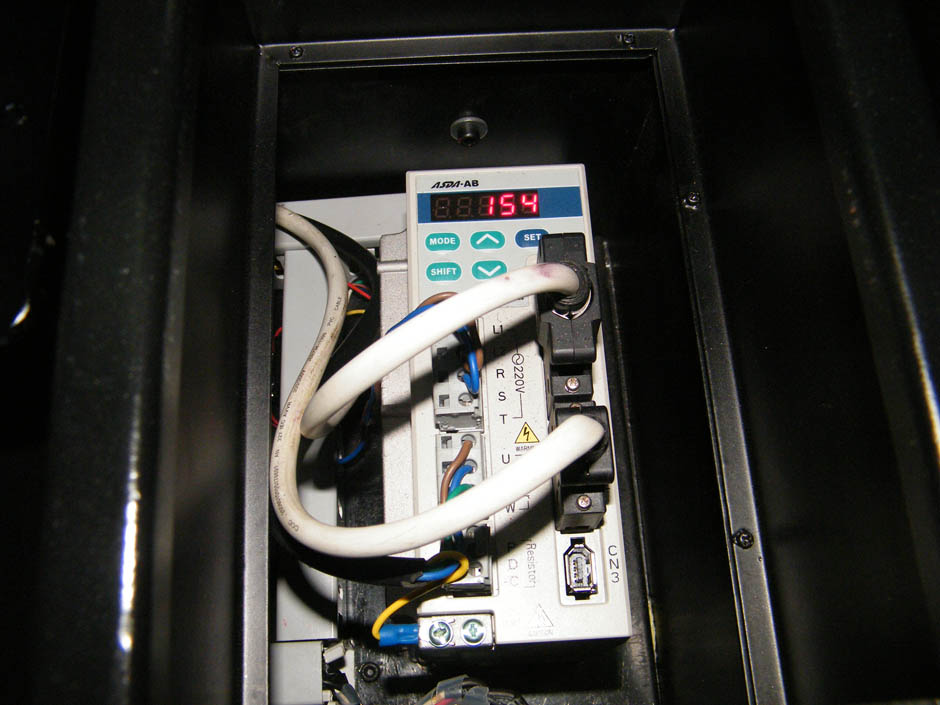

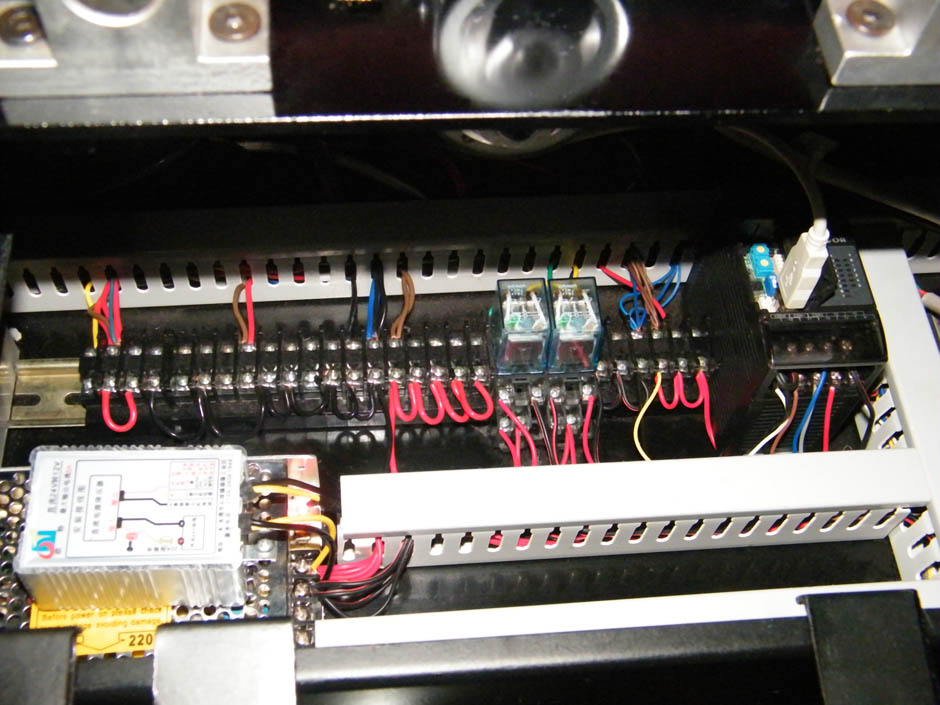

8.Industrial PLC control system is the heart of printer, Before we use the single chip control system, so if any problem will cause the print error, now
we use the PLC control system, It is a special alone control center, can dispatch all the working command to different electronic parts separately , and
get worked information back. Then process and check itself, also it have self protection problem. Even any problem happen, the PLC will stop for protect
the printer and prevent the print head, electronic board and other electronic parts damage. So it is easy to find out the problem and repair it even any
problem happend.
Click here to learn more about "PLC Control system"
9. High quality made touch screen control panel.
10. Matching Professional FocusRip white rip and printing software, Get better graphic raster and rapid result while printing with white ink. Powerful function such as clor
management, color channel divide management, ICC optional, Whiteness adjustable.
2. Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing
<4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image
etc...
It is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
3. Specification:
|
Cycle-jet |
|
Printing size |
Width: 420mm, Length: Infinite Unlimited, |
|
Printhead |
180*8 1440 nozzle piezo technology |
|
Print Color |
8 Color: Cyan. Magenta. Yellow. Black. Light Cyan and Light Magenta.Light black. Light light black
White ink printing: CMYK+WWWW |
|
Printing Direction |
Bi-Direction |
|
Printing Speed |
1440DPI model: A4 size/ 90s |
|
Motion system |
Rotary motion |
|
Material feed |
Flatbed / Roller feeding |
|
Control pannel |
Touch pannel |
|
Max. height of object |
15CM |
|
Max. Printing resolution |
2880DPI*1440DPI |
|
Ink Tank Volume |
150ML |
|
Ink |
Oil Base Ink / Dye base ink / Textile DTG ink |
|
Height Adjust |
Automatic/Manual Adjust/ Red-ray control |
|
Printing Object Height Examine |
Automatic Detecting |
|
Printhead Protection |
Intelligent Self Protect System |
|
Power |
110-220V 50-60HZ 75W |
|
Printing Interface |
USB2.0/LTP |
|
Operation System |
Windows95,98,NT,2000,XP,MAC |
|
Working Environment |
10-35 C,20-80 RH |
|
Max.printing weight |
25KG |
|
Printer Size |
2700MM*1300MM*1100MM |
|
Shipping Size |
2850MM*1400MM*1300MM |
|
Printer N.Weight/G.Weight |
260KG/380KG |
4. Printed samples:
